Turret Network Cameras

Turret Network Cameras

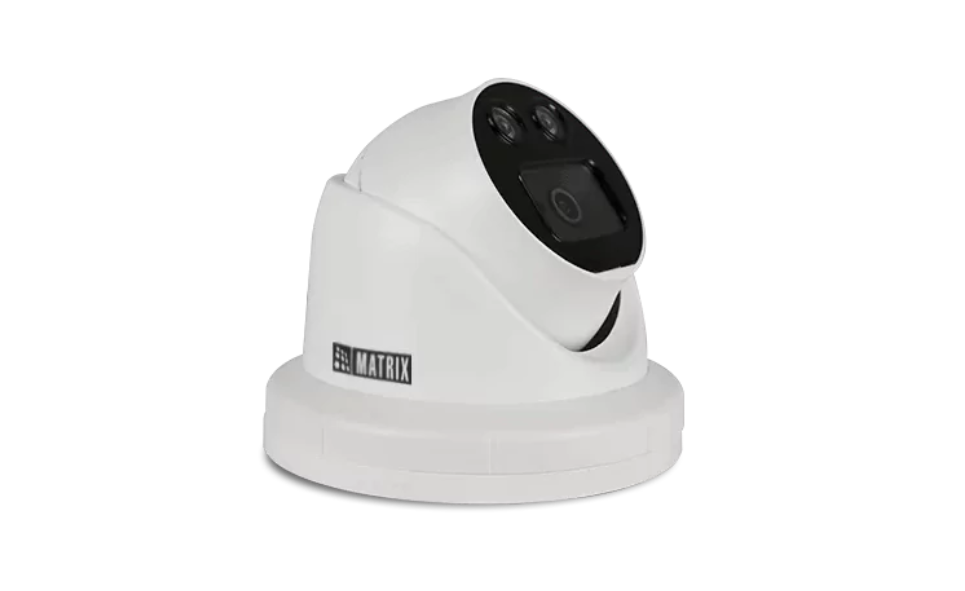

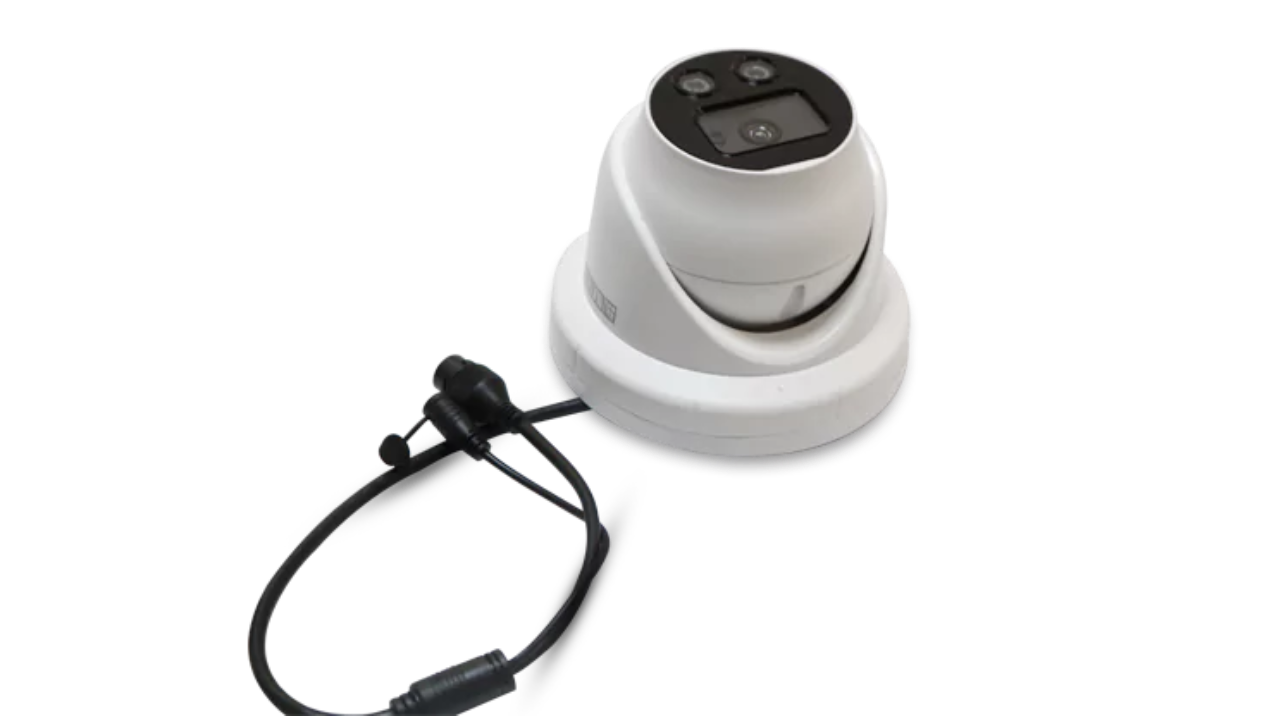

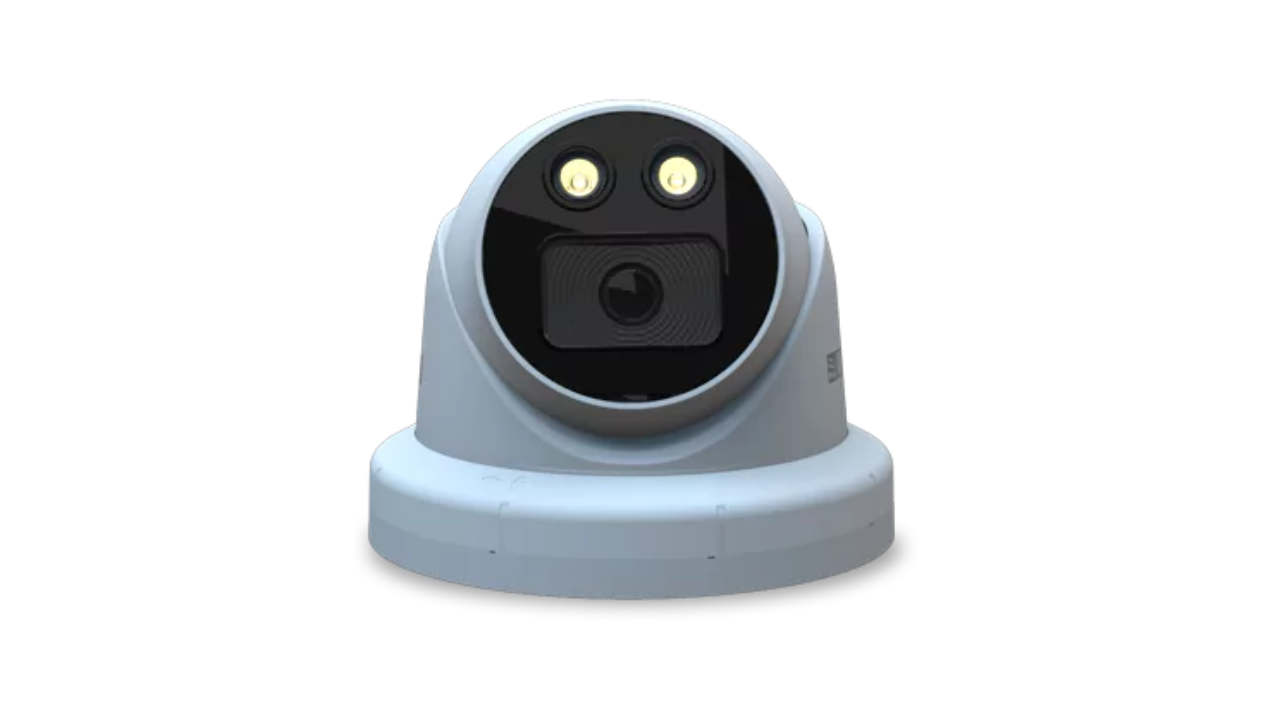

Also known as mini-dome, eyeball or flat-faced dome camera, it has a ball and socket design which allows it to rotate freely once the base is mounted

Turret Cameras, Available in Standard and All Color Variants
  • Revolutionary low-light color imaging technology for clear and vivid surveillance, day or night
  • Astounding Color View, Even at 0.01 lux Illumination Level in the Standard Variant
  • All Color Cameras Come with Supplement light (WARM LED) for Superior Performance
  • SONY STARVIS Back Illuminated Sensor for Better Image Quality in Low-light Conditions
  • IR Led Range of up to 30m for Better Visibility at Night
    • First Indian Company to Offer RDSO 6.0 Compliant Cameras, Certified by STQC Delhi Lab
    • Data Privacy and Protection with OWASP ASVS 4.0 L2 Compliant Turret IP Cameras
    • Eliminates Network Vulnerability by Providing Adequate Password, Firmware, and Software Protection
    • Https Streaming Using TLS 1.2 and Edge Data Encryption to Ensure Cyber Secure Data Streaming and Storage
    • Turret Cameras come in Ball and Socket Design
    • Effortless Rotation for easy Manual Positioning
    • Versatile Angles for Image Capture from Anywhere
    • Seamless Operation for Ease of Use

    Features


    Varied Specifications

    Catering diverse needs with varied specifications - 2MP/5MP resolutions, flexible lens options

    01

    Adaptive Streaming

    Reduce frame rate when inactive, cutting storage and bandwidth usage by up to 50% for optimized performance

    02

    Sturdy Design

    Matrix introduces impact-resistant ADI casing, simplified maintenance with an external reset switch, and a chambered design to eliminate IR glare

    03


    Smart Streaming

    Smart streaming technology divides streams into multiple bitrates, optimizing storage and bandwidth while preserving crucial details

    04

    120dB True WDR

    Unlock perfect lighting reproduction with 120dB WDR. Smart exposure adjustment ensures perfectly balanced captures every time

    05


    Intelligent Video Analytics

    Intelligent Video Analytic Features for Comprehensive Surveillance: motion, tamper, intrusion, tripwire, and time-triggered detection

    06


    Quad Stream Support

    Quad stream support in CCTV cameras enables simultaneous generation of four video streams, gives the flexibility for monitoring, recording, and live-streaming activities

    07


    Expanded Field of View

    Experience unmatched surveillance with Matrix CCTV cameras featuring a Wide Field of View of 125°

    08


    High Sound-to-Noise Ratio

    Unrivaled image precision with Matrix CCTV Cameras boasting an exceptional SNR ratio of >70dB

    09

    Turret Network Cameras

    Turret Network Cameras Variants

    Available in Standard and All Color Variants

    2MP (IR Turret Cameras | All Color Cameras)

    • 2MP Resolution
    • 120dB True WDR, >70dB SNR
    • IR Range, Warm Led Range up to 30m
    • BIS, CE, FCC, RoHS, IP67
    • NDAA Compliant
    2MP Turret Cameras

    Technical Specifications

    Download
    ParametersSpecifications
    IMAGE SENSOR
    Resolution 2 MP (1920 x 1080)
    Sensor Type and Size 1/2.8″ SONY – CMOS 2MP Active Pixel, Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)
    LENS
    Minimum Illumination Colour – 0.01 Lux @( F1.2 AGC ON),
    IR Turret Cameras: Monochrome – 0 Lux,
    Turret All Color Cameras: 0 Lux with white light
    Focal Length 2.8mm, 3.6mm, 6mm
    Field of View (FOV)
    2.8mm 3.6mm 6mm
    HFOV 106.9° 87.6° 54°
    VFOV 56.9° 46.4° 29.03°
    DFOV 127.9° 104.5° 62.96°
    Focus Range 0.3m to infinity
    Lens Mount For Fixed Lens: M12
    Focus Fixed for 2.8mm,3.6mm, 6mm
    Aperture (F#) Fixed Lens: F 1.6/ F2.0
    Iris Type Fixed Lens: Fixed
    Type of LED IR Turret Cameras: IR LED, Turret All Color Cameras: Warm LED
    IR LED and Supplement LED Range Up to 30m
    Switching Auto/ Manual (Both IR and LED)
    AUDIO INTERFACE
    Audio IN NA
    Audio OUT NA
    Two-way Audio NA
    Audio Compression NA
    Alarm In NA
    Alarm Out NA
    HARDWARE SPECIFICATIONS
    SD Card Not Supported
    Camera Adjustment Angle Pan – 0° to 360° Tilt – 0° to 75° Rotate – 0° to 360
    IMAGE AND VIDEO
    No. of Stream Profiles 4
    Stream Profiles Profile 1: 1920x1080p(2MP) @30fps (H.265/ H.264)
    Profile 2: D1 @30fps (H.265/H.264)
    Profile 3: 1080p/720p/D1/2CIF/CIF @5fps (MJPEG) or 720p/D1/2CIP/CIF@15fps(H.264/H.265)
    Profile 4: 720p/D1/2CIF/CIF @ 30 fps (H.265/H.264/MJPEG)
    Available Resolutions 1920 x 1080, 720p, D1,2CIF, CIF, VGA
    Max Resolution 1920 x 1080
    Bitrate 128 kbps-8Mbps
    Bitrate Type CBR, VBR
    Video Compression H.265, H.264, MJPEG
    Frame Rate 1-30fps
    Shutter Speed 1/15s -1/100000s (in Upcoming Release)
    Adaptive Streaming Yes
    ONVIF Profiles S, G and T
    Edge Recording Yes only in NAS
    Alarm Recording Pre (30 sec) and Post(300 sec)
    Motion Recording Yes
    Time-triggered Yes
    Video Parameters Snapshot, Region of Interest (ROI), BLC, Day/Night Settings
    Privacy Masks 3
    WDR True WDR (120dB)
    SNR >70dB
    Image Enhancement Saturation/ Contrast/ Sharpness/Brightness/Auto Exposure/HVS-Forensics/ Smart IR
    DNR 2D &3D
    Video Analytics Motion/No Motion Detection, View Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion
    ALERTS
    IP Conflict Yes
    Network Disconnect Yes
    Storage Full Yes
    EVENTS AND ACTIONS
    Upload Image NAS, SFTP
    Upload Clip NAS, SFTP
    Notifications E-mail, SMS, TCP
    PROTOCOLS SUPPORTED
    Supported protocols TCP/IP, HTTP,ARP, HTTPS, DHCP, QoS, DHCP, DNS, DDNS, RTP, RTCP, RTSP, PPPOE,
    SMTP, NTP, HTTPS, TLS/SSL, SFTP, ICMP, IGMP, 802.1x, SNMP, UPnP, Bonjour,UDP
    Web Viewer Supported in IE 8.0-11.0, Firefox 15.0-47.0, Chrome 20.0-54.0
    Browser IE, Chrome, Mozilla
    CYBER SECURITY
    Secure boot Yes
    Signed firmware Yes
    Data Encryption All data, including sensitive data, is encrypted with AES 256 and RSA 2048
    IP Address Filtering Yes
    HTTPs Streaming Yes, using TLS 1.2
    Edge Data Encryption Yes
    Network Authentication Yes,802.1x Network authentication
    Secure Firmware Upgrade Yes
    Anti-roll back firmware Yes
    Web login Password protection Yes
    Unused debug interface protection Yes
    OPERATING PARAMETERS
    Power Supply 802.3af (PoE)
    Power Consumption Approximately 5W
    Operating Humidity Less than 95% RH (non-condensing)
    Operating Temperature -30°C to 60°C
    Storage Temperature -35°C to 60°C
    PHYSICAL PARAMETERS
    Communication interface 10Base-T/100BaseTX Ethernet (RJ-45)
    Weight 720gms
    Color Infinity White
    Dimensions Φ138.58 mm x 118.97 mm (Diameter x Height)
    Storage NAS
    Certifications BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S G and T, STQC Certified with OWASP ASVS 4.0 L2
    View More

    5MP (IR Turret Cameras | All Color Cameras)

    • 5MP Resolution
    • 120dB True WDR, >70dB SNR
    • IR Range, Warm Led Range up to 30m
    • BIS, CE, FCC, RoHS, IP67
    • NDAA Compliant
    5MP Turret Cameras

    Technical Specifications

    Download
    ParametersSpecifications
    IMAGE SENSOR
    Resolution 5 MP (2592*1944)
    Sensor Type and Size 1/2.8″ SONY – CMOS 5MP Active Pixel Progressive Scan, Back-Illuminated Image sensor (STARVIS Series)
    LENS
    Minimum Illumination Colour – 0.01 Lux @( F1.2 AGC ON),
    IR Turret Cameras: Monochrome – 0 Lux,
    Turret All Color Cameras: 0 Lux with white light
    Focal Length 2.8mm, 4mm, 6mm
    Field of View (FOV)
    2.8mm 4mm 6mm
    HFOV 107° 87.6° 54.3°
    VFOV 57° 46.4° 29°
    DFOV 128° 104.5° 63°
    Focus Range 0.3m to infinity
    Lens Mount For Fixed Lens: M12
    Focus Fixed for 2.8mm, 4mm, 6mm
    Aperture (F#) Fixed Lens: F 1.6/ F2.0
    Type of LED IR Turret Cameras: IR LED, Turret All Color Cameras: Warm LED
    IR LED and Supplement LED Range Up to 30m
    Switching Auto/ Manual (Both IR and LED)
    AUDIO INTERFACE
    Audio IN NA
    Audio OUT NA
    Two-way Audio NA
    Audio Compression NA
    Alarm In NA
    Alarm Out NA
    HARDWARE SPECIFICATIONS
    SD Card NA
    Camera Adjustment Angle Pan – 0° to 360°
    Tilt – 0° to 75°
    Rotate – 0° to 360
    IMAGE AND VIDEO
    No. of Stream Profiles 4
    Stream Profiles Profile 1: 2592 x 1944 @30fps (H.264/H.265)
    Profile 2: D1 @30fps (H.265/H.264)
    Profile 3: 2048×1536 @8fps (MJPEG))
    Profile 4: 1920 x 1080 @30fps (H.265/ H.264/ MJPEG
    Available Resolutions 2592 X 1944,2592 X 1520,2048 X 1536, 1920 X 1080,720p,D1,2CIF,VGA,CIF
    Max Resolution 2592×1944
    Bitrate 128kbps-16Mbps
    Bitrate Type CBR, VBR
    Video Compression H.265, H.264, MJPEG
    Frame Rate 1-30fps
    Shutter Speed 1/15s -1/100000s
    Adaptive Streaming Yes
    ONVIF Profiles S, G and T
    Edge Recording Yes
    Alarm Recording Pre and Post
    Motion Recording Yes
    Time-triggered Yes
    Video Parameters Snapshot, Region of Interest (ROI), BLC, Day/Night Settings
    Privacy Masks 8
    WDR True WDR (120dB)
    SNR >70dB
    Image Enhancement Rotation/ Saturation/ Brightness/ Contrast/ Hue/Sharpness/ White Balance
    DNR 2D &3D
    Video Analytics Motion/No Motion Detection, View Tamper Detection, Trip/No Trip Detection, Object Intrusion/Zone Intrusion
    ALERTS
    IP Conflict Yes
    Network Disconnect Yes
    Storage Full Yes
    EVENTS AND ACTIONS
    Upload Image SD, NAS, SFTP
    Upload Clip SD, NAS, SFTP
    Notifications E-mail, SMS, TCP
    CYBER SECURITY
    Secure boot Yes
    Signed firmware Yes
    Data Encryption All data, including sensitive data, is encrypted with AES 256 and RSA 2048
    IP Address Filtering Yes
    HTTPs Streaming Yes, using TLS 1.2
    Edge Data Encryption Yes
    Network Authentication Yes,802.1x Network authentication
    Secure Firmware Upgrade Yes
    Anti-roll back firmware Yes
    Web login Password protection Yes
    Unused debug interface protection Yes
    OPERATING PARAMETERS
    Power Supply 802.3af (PoE)
    Power Consumption Approximately 7W
    Operating Humidity Less than 95% RH (non-condensing)
    Operating Temperature -30°C to 60°C
    Storage Temperature -35°C to 60°C
    PHYSICAL PARAMETERS
    Communication interface 10Base-T/100BaseTX Ethernet (RJ-45)
    Weight 720gms
    Color Infinity White
    Dimensions Φ138.58 mm x 118.97 mm (Diameter x Height)
    Storage NAS
    Certifications BIS, CE, IP67, FCC Part-15 Subpart – B, ONVIF S G and T, STQC Certified with OWASP ASVS 4.0 L2
    View More

    Ordering Information

    Turret Series 2MPDescriptionLensFocal LengthTwo-way AudioDigital I/O
    SATATYA MITC20FL28CWS P22MP All Color Camera with 2.8mm LensFixed2.8mmNoNo
    SATATYA MITC20FL36CWS P22MP All Color Camera with 3.6 mm LensFixed3.6mmNoNo
    SATATYA MITC20FL60CWS P22MP All Color Camera with 6 mm LensFixed6.0mmNoNo
    SATATYA MITR20FL28CWS P22MP IR Turret Camera with 2.8mm LensFixed2.8mmNoNo
    SATATYA MITR20FL36CWS P22MP IR Turret Camera with 3.6mm LensFixed3.6mmNoNo
    SATATYA MITR20FL60CWS P22MP IR Turret Camera with 6mm LensFixed6.0mmNoNo
