SPARSH VP510E

Matrix SPARSH VP510E

SPARSH VP510 is a new member of the family of SIP Phones that redefines the telephony experience and quality of business communications.

Next-gen Call Amenities
  • IP Phone with LED for Incoming/Ongoing Calls, Mute, and Hold
  • Global Directory Integration
  • Advanced Call Routing
  • HD Audio Quality
  • Secure SIP Communication with IP Phone
  • AES Encryption for Configuration File
  • Digest Authentication using MD5
  • Support for VPN (Virtual Private Network) Connectivity
  • Encryption for Data Protection
  • Call Back and Auto-answer
  • Call Forwarding and Follow Me Functionality
  • Seamless Call Handover
  • Mobile Extension Integration
  • IP Phone Seamlessly Integrates with Softphones – for Android/iOS/Windows OS

    Highlight Features


    240 x 64 Graphical LCD with Backlit

    Crystal clear graphical display provides enhanced user experience

    01


    Dual-switched Auto Sensing 10/100/1000mbps Network Ports

    Efficient and versatile connectivity with gigabit network ports

    02


    Built-in 16 DSS Keys for Feature, Line, and Extension

    IP phone facilitates one-touch easy access to different line extensions

    03


    Power over Ethernet (IEEE 802.3af)

    Enables convenient and simplified installation

    04


    4 Context-sensitive Keys

    Quick and easy access to relevant functions based on the user's current context

    05

    Alphanumeric Dial Pad Keys

    Convenient and efficient dialing of numbers, letters, and characters

    06

    Message Wait and Ringer Lamp

    IP phone provides visual indicators for new messages and incoming calls, ensuring important notifications are easily noticed

    07

    Full Duplex Speakerphone

    Enables an experience of superior audio quality and clarity

    08


    Headset Interface - 3.5mm, RJ9

    Enables seamless integration with compatible headsets, providing hands-free communication

    09


    Adjustable Desk Mount

    Enables flexible positioning and comfortable use

    10

    SPARSH VP510E

    SPARSH VP510E Variants.

    Premium Standard SIP Phone

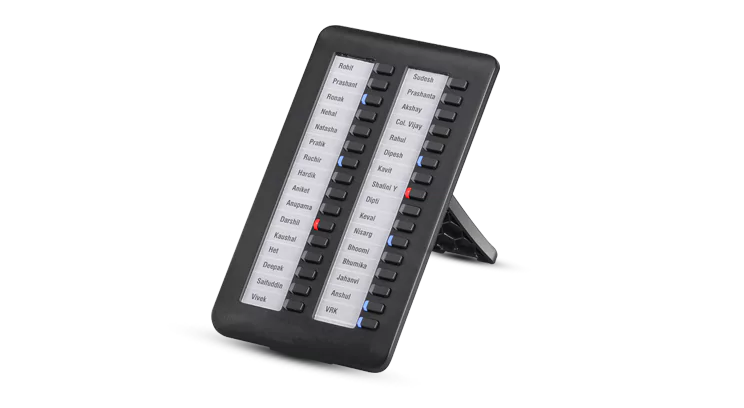

    DSS532 - IP/DSS Console for IP/Digital Phones

    • 32 Keys
    • Compatible Phones: SPARSH VP510E and EON510
    • Compatible PBX: All Variants of SARVAM and ETERNITY Series
    • Maximum 4 Consoles per Phone
    SPARSH VP510E

    Technical Specifications

    Download
    ParametersFeatures
    Audio Features
    • Codec: G.722, G.711(A/μ), G 729, G.723.1
    • DTMF: In-band, Out-band (RFC 2833) & SIP INFO
    • Full-duplex Hands-free Speaker Phone
    Phone Features
    • 2 SIP accounts
    • Call Hold, Mute, DND
    • Local 3-way Conferencing
    • Call Transfer, Call Forward
    • Auto Answer
    • Dial Plan
    • Speed Dial
    • LDAP
    • Local Phone Book up to 200 entries
    • Call History: Dialed/Received/Missed/Rejected
    Networking and Security
    • SIP v2 (RFC3261)
    • Proxy Mode and Peer-to-Peer Mode
    • IPv4
    • IP Assignment: DHCP, Static
    • SRTP
    • VoIP Protocol: SIP (1 SIP Account in Extended) (2 SIP Account in Standard)
    Ethernet Ports
    • 2 x RJ45 10/100/1000 Mbps Ethernet Ports
    Feature Keys
    • Mute, Headset, Hands-free Speaker Phone, DND, Hold, Redial, Transfer, Conference, Voicemail
    • 4 Context Sensitive Keys
    • Volume Control Keys
    • Navigation Keys
    • 16 DSS Programming Keys
    IP-PBX Features
    • Anonymous Call, Anonymous Call Rejection
    • Emergency Call
    • Message Wait Indication
    • Voice Mail, Call Park, Call Pick-up
    • Intercom, Paging
    Display and Indicator
    • 240*64 Pixels Graphical LCD
    • LED for Call and Message Waiting Indication
    • Caller ID with Name and Number
    Interface
    • 2 x RJ45 10/100/1000 Ethernet Ports
    • Power over Ethernet (IEEE 802.3af)
    • 1 RJ9 Handset Port
    • 1 RJ9 Headset Port
    • 1 3.5mm Headset Port
    • DC Power Jack
    • Operating Humidity: 5-95 %
    • Operating Temperature: 0 °C to 45 °C
      Packaging
      • Packaging Content
        • SPARSH VP510 IP Phone
        • Handset with Handset Cord
        • Ethernet Cable
        • Stand
        • Wall Mounting Guide with Grip and Screw
      Compliance
      • CE
      • FCC – Part 15B
      • Safety- IEC/EN 62368-1
      • HAC
      • RoHS
      • MADE IN INDIA
