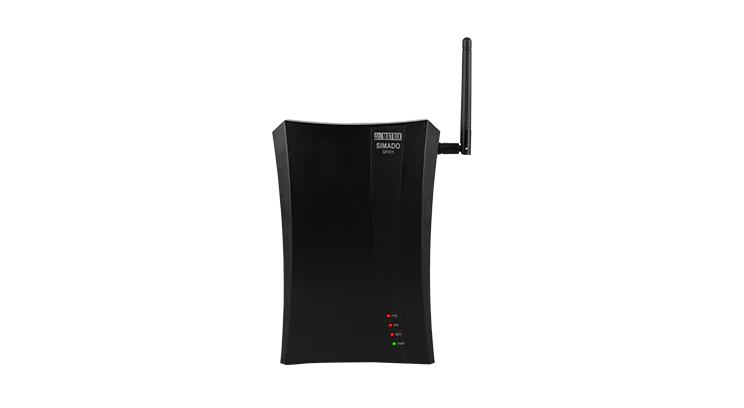

Matrix SIMADO GFX11
SIMADO GFX11 is a compact GSM fixed cellular terminal for voice applications, used to make and receive calls over the GSM/4G network while retaining the existing infrastructure.
GSM/4G Connectivity to Existing PBX
- GSM FCT Gateway enables Seamless Integration of GSM/4G Connectivity with GSM/4G Networks
- Make Mobile Calls from Analog Extensions
- Fixed-to-mobile Call Feasibility Optimization
Secure Network Bridging
- Secure Connection between GSM/4G Networks and Internal PBX Infrastructure with GSM FCT Gateway
- Emergency Number Dialing, Even in the Absence of SIM Card
- Restrict Unwanted Calls through List of Denied Numbers
- Prevention of Unauthorized Access and Data Breaches
Service Provider Lock
- GSM FCT Gateway Locks Device to Work with Specific Service Provider
- Locks/Unlocks, even when a SIM Card is not Inserted
- Compatibility with Multiple GSM Service Providers
- Flexibility to Change or Update the Locked Service Provider
Highlight Features
Quad-band, LTE Support
Seamless communication and connectivity through the latest cellular technology using GSM FCT Gateway
01
Automatic Number Translation
Converts dialed numbers to their corresponding destination numbers for seamless and accurate call handling
02
Call Detail Record
Comprehensive and detailed information about each call for monitoring, analysis, and billing purposes using GSM FCT Gateway
03
Allowed and Denied List
Manage call permissions by specifying which numbers are permitted or blocked, ensuring effective call management and security
04
05
Emergency Number Dialing
Direct and immediate access to emergency services for prompt assistance and peace of mind
06
CLI Display
Real-time caller information on the connected devices for efficient call handling and personalized communication through GSM FCT Gateway
07
Multi-stage Dialing
Efficient and reliable communication connections across multiple networks or destinations
08
Polarity Reversal
Seamless communication connectivity and compatibility allows reliable and efficient transmission of voice signals through GSM FCT Gateway
09

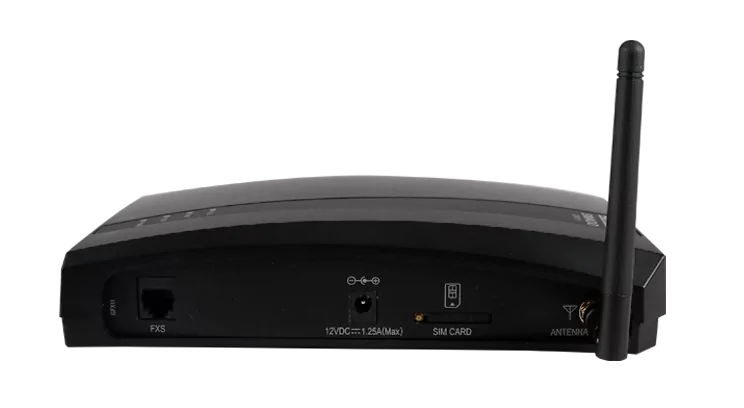

SIMADO GFX11
SIMADO GFX11 Variants.
GSM FCT Gateway
- 1 GSM Port
- 1 FXS Port
- 1 SMA Antenna
- Supports 2G Connectivity
- 12V DC Power (Adaptor Based)
SIMADO GFX11
Technical Specifications
| SIMADO GFX11 | GSM (2G) FCT for Voice Applications |
|---|---|
| Mobile Port | |
| GSM/4G SIM Cards | 1 |
| Frequency Bands | Quad-band GSM850, EGSM900, DCS1800, PCS1900, UMTS850, UMTS900, UMTS1900, UMTS2100, PCS1900 Tri-band WCDMA 850/1900/2100 MHz or Tri-band WCDMA 900/1900/2100 MHz |
| SIM Interface | 1.8, 3V SIM Interface |
| Compliance | ETSI GSM Phase2/2+ |
| FXS Port | |
| Connector | RJ11 |
| Dialling and Reception | Pulse and DTMF Dialling |
| CLIP | DTMF and FSK CLI Presentation |
| Answering and Disconnect Signalling | Polarity Reversal for Call Connect/Disconnect Signalling |
| Power Supply | |
| Input | External Power Adaptor 100-240 VAC, 47-63Hz Output: 12VDC@1.25A |
| Power Consumption | 5W (Typical) |
| Other | |
| Dimensions (W x H x D) | 133.5 x 198 x 44.6 mm |
| Mounting Options | Wall Mount and table Top |
| Operating Temperature | 0°C to +45°C (34°F to +133°F) |
- 1 GSM/4G Port
- 1 FXS Port
- 1 SMA Antenna
- Supports 4G Connectivity
- 12V DC Power (Adaptor Based)
SIMADO GFX11 4G
Technical Specifications
| SIMADO GFX11 4G | GSM (2G/3G/4G) FCT for Voice Applications |
|---|---|
| Mobile Port | |
| GSM/4G SIM Cards | 1 |
| Frequency Bands | Quad-band GSM850, EGSM900, DCS1800, PCS1900, UMTS850, UMTS900, UMTS1900, UMTS2100, PCS1900 Tri-band WCDMA 850/1900/2100 MHz or Tri-band WCDMA 900/1900/2100 MHz |
| SIM Interface | 1.8, 3V SIM Interface |
| Compliance | ETSI GSM Phase2/2+ |
| FXS Port | |
| Connector | RJ11 |
| Dialling and Reception | Pulse and DTMF Dialling |
| CLIP | DTMF and FSK CLI Presentation |
| Answering and Disconnect Signalling | Polarity Reversal for Call Connect/Disconnect Signalling |
| Power Supply | |
| Input | External Power Adaptor 100-240 VAC, 47-63Hz Output: 12VDC@1.25A |
| Power Consumption | 5W (Typical) |
| Other | |
| Dimensions (W x H x D) | 133.5 x 198 x 44.6 mm |
| Mounting Options | Wall Mount and table Top |
| Operating Temperature | 0°C to +45°C (34°F to +133°F) |
- 1 GSM Port
- 1 FXS Port
- 1 SMA Antenna
- Supports 2G Connectivity
- Built-in Battery Back-up
- 12V DC Power (Adaptor Based)

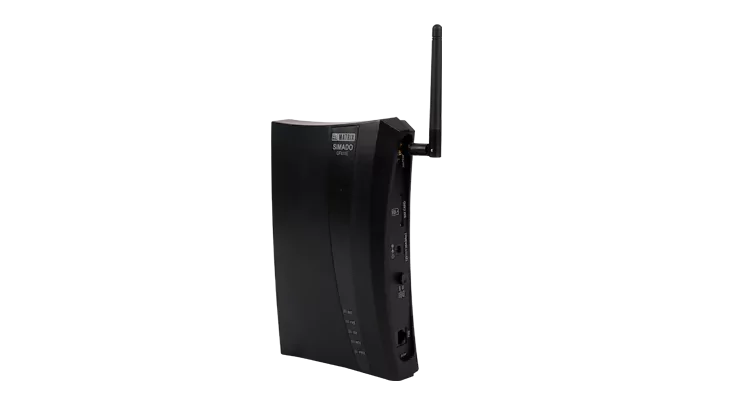

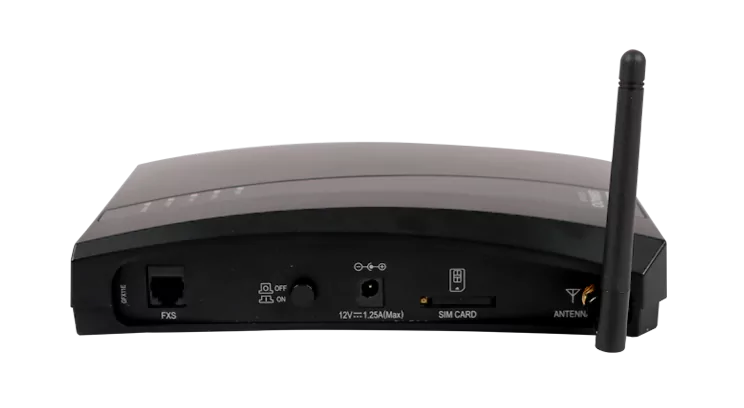

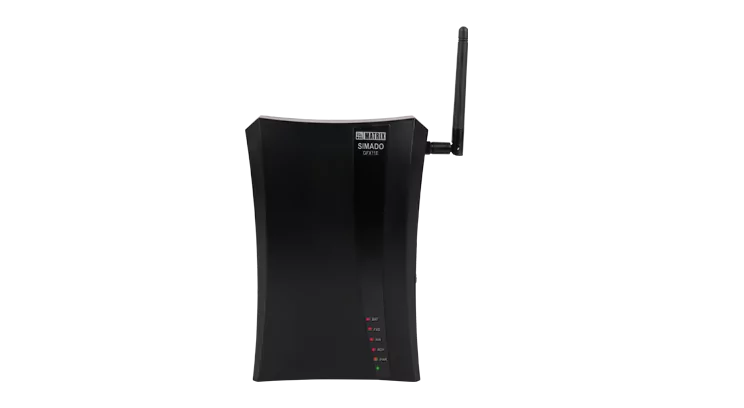

SIMADO GFX11E
Technical Specifications
| SIMADO GFX11E | GSM (2G) FCT for Emergency Applications |
|---|---|
| Mobile Port | |
| GSM/4G SIM Cards | 1 |
| Frequency Bands | Quad-band GSM850, EGSM900, DCS1800, PCS1900, UMTS850, UMTS900, UMTS1900, UMTS2100, PCS1900 Tri-band WCDMA 850/1900/2100 MHz or Tri-band WCDMA 900/1900/2100 MHz |
| SIM Interface | 1.8, 3V SIM Interface |
| Compliance | ETSI GSM Phase2/2+ |
| FXS Port | |
| Connector | RJ11 |
| Dialling and Reception | Pulse and DTMF Dialling |
| CLIP | DTMF and FSK CLI Presentation |
| Answering and Disconnect Signalling | Polarity Reversal for Call Connect/Disconnect Signalling |
| Power Supply | |
| Input | External Power Adaptor 100-240 VAC, 47-63Hz Output: 12VDC@1.25A |
| Battery Back-up | 4 hours (idle mode), 2 hours (talking mode) |
| Power Consumption | 5W (Typical) |
| Other | |
| Dimensions (W x H x D) | 133.5 x 198 x 44.6 mm |
| Mounting Options | Wall Mount and table Top |
| Operating Temperature | 0°C to +45°C (34°F to +133°F) |
- 1 GSM/4G Port
- 1 FXS Port
- 1 SMA Antenna
- Supports 4G Connectivity
- Built-in Battery Back-up
- 12V DC Power (Adaptor Based)
SIMADO GFX11E 4G
Technical Specifications
| SIMADO GFX11E 4G | GSM (2G/3G/4G) FCT for Emergency Applications |
|---|---|
| Mobile Port | |
| GSM/4G SIM Cards | 1 |
| Frequency Bands | Quad-band GSM850, EGSM900, DCS1800, PCS1900, UMTS850, UMTS900, UMTS1900, UMTS2100, PCS1900 Tri-band WCDMA 850/1900/2100 MHz or Tri-band WCDMA 900/1900/2100 MHz |
| SIM Interface | 1.8, 3V SIM Interface |
| Compliance | ETSI GSM Phase2/2+ |
| FXS Port | |
| Connector | RJ11 |
| Dialling and Reception | Pulse and DTMF Dialling |
| CLIP | DTMF and FSK CLI Presentation |
| Answering and Disconnect Signalling | Polarity Reversal for Call Connect/Disconnect Signalling |
| Power Supply | |
| Input | External Power Adaptor 100-240 VAC, 47-63Hz Output: 12VDC@1.25A |
| Battery Back-up | 4 hours (idle mode), 2 hours (talking mode) |
| Power Consumption | 5W (Typical) |
| Other | |
| Dimensions (W x H x D) | 133.5 x 198 x 44.6 mm |
| Mounting Options | Wall Mount and table Top |
| Operating Temperature | 0°C to +45°C (34°F to +133°F) |
