SETU VTEP

Matrix SETU VTEP

Matrix SETU VTEP is a compact and dedicated VOIP PRI Gateway for VoIP to T1/E1 PRI network. It offers high communication experience to businesses.

Ports and Trunks Supported
  • VoIP PRI Gateway Supports up to 4 T1/E1 Ports
  • Up to 125 SIP Trunks
  • Support for PRI Trunks
  • Interface for VoIP Connectivity
  • Scalable Port Capacity for Expanding Communication Infrastructure
  • VoIP PRI Gateway with Simple UI and Enhanced UX
  • Easy to Use and Faster Deployment
  • Intuitive Navigation and Configuration Options
  • Simplified Setup and Management of Gateway Settings
  • Real-time Monitoring and reporting via the Web Interface
    • VoIP PRI Gateway Eliminates the Cumbersome Manual Selection of Call Provider
    • Offers Intelligent Call Routing to Optimize Communication Costs
    • Real-time Analysis of Call Rates and Routing Options

    Highlight Features

    120 Simultaneous Calls

    Multiple concurrent calls can be handled simultaneously using the VoIP PRI Gateway, ensuring smooth and uninterrupted communication for increased productivity

    01

    Least Cost Routing

    VoIP PRI Gateway intelligently selects the most economical route for outgoing calls, minimizing expenses and maximizing savings

    02


    PIN Authentication

    Requires users to input a unique Personal Identification Number for authorized access to the gateway and associated services

    03


    Automatic Number Translation

    VoIP PRI Gateway seamlessly converts and routes incoming and outgoing calls to their respective translated numbers for streamlined communication management

    04


    Call Detail Records of Up to 2000 Calls

    VoIP PRI Gateway captures and stores detailed information about each call for monitoring, billing, and analysis purposes

    05

    Dynamic DNS

    VoIP PRI Gateway automatically updates and maps domain names to changing IP addresses, ensuring seamless connectivity and easy accessibility from anywhere

    06

    Fax Over IP

    Transmission of fax messages through seamless integration, improved efficiency, and reduced reliance on traditional fax infrastructure

    07


    Emergency Number Dialing

    VoIP PRI Gateway enables direct and immediate access to emergency services for enhanced safety and peace of mind

    08

    Digest Authentication

    Verifies and protects user credentials during the authentication process for enhanced privacy and data protection

    09

    SETU VTEP

    SETU VTEP Variants.

    VoIP PRI Gateway to Bridge Business Networks

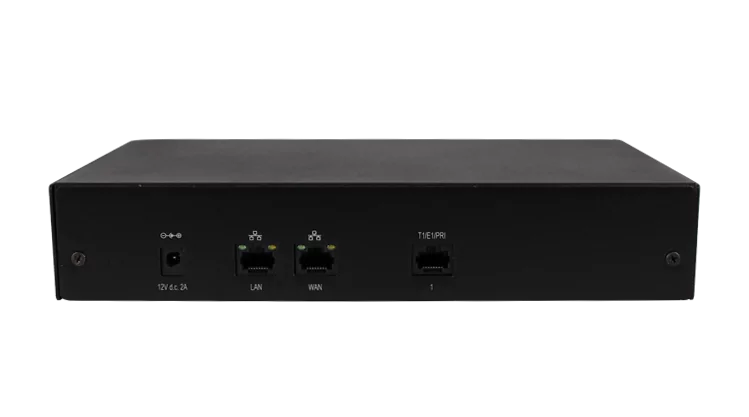

    SETU VTEP1P - VoIP PRI Gateway with 1 PRI Port

    • 1 T1/E1 PRI Port
    • 125 SIP Trunks
    • 30 Simultaneous Calls
    • 1 VoIP Modules
    SETU VTEP1P

    Technical Specifications

    Download
    ParticularsT1/E1 PRI PortsSIP TrunksNo. of simultaneous calls (VoIP to PRI)No. of Built-in VoIP Modules
    SETU VTEP 1P1125301
    LAN Port1 X 10/100/1000 Mbps Gigabit Interface
    WAN Port1 X 10/100/1000 Mbps Gigabit Interface
    VoIP ProtocolsSIP V2, SDP, RTP (RFC 2883)
    Network ProtocolsIPV6, IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
    NATSTUN and NAT Keep-Alive
    Voice CodecsG.723, G.729, iLBC 30ms & 20ms, GSM-FR, G.711 A-Law & µ-Law, GSM-EFR
    Call Progress ToneDial Tone, Ring Back Tone, Busy Tone, and Error Tone
    FAXT.38 UDPTL and Pass-Through
    Power Supply12V DC, 2A
    Power Consumption22.37 Watt (Max.)
    Dimensions (W X H X D)250.6 X 155.7 X 46 mm (Without Side Clamp) 491 X 155.7 X 46 mm (With Side Clamp)
    Mounting1U Rack Mount & Table-Top
    Operating Temperature0°C to 45°C
    Operating Humidity5 – 95% RH, Non-Condensing
    Storage Temperature-20°C to +70°C
    Storage Humidity0 – 95% RH, Non-Condensing
    View More

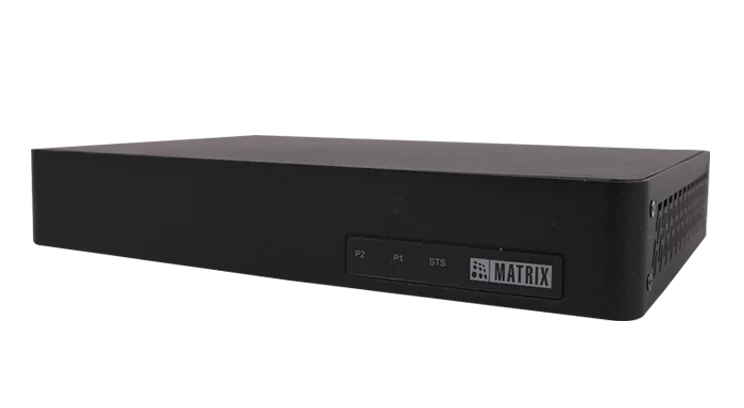

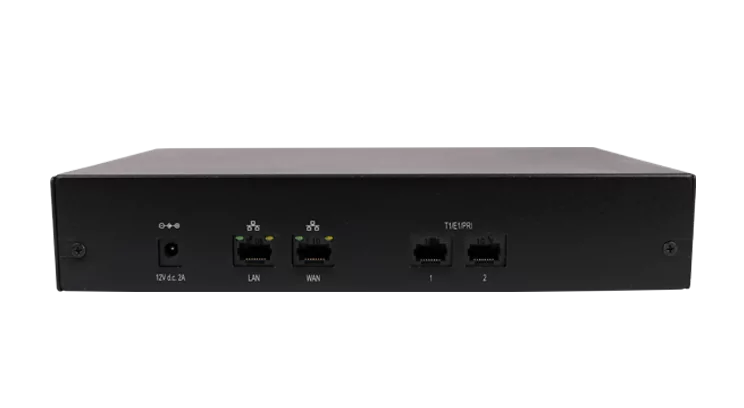

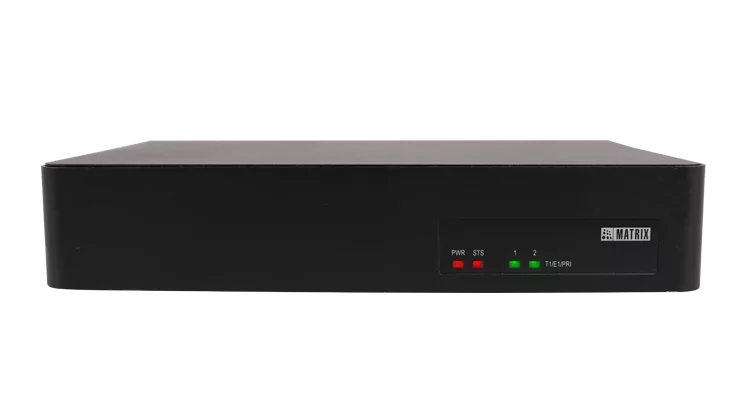

    SETU VTEP2P - VoIP PRI Gateway with 2 PRI Ports

    • 2 T1/E1 PRI Ports
    • 125 SIP Trunks
    • 60 Simultaneous Calls
    • 1 VoIP Modules
    SETU VTEP2P

    Technical Specifications

    Download
    ParticularsT1/E1 PRI PortsSIP TrunksNo. of simultaneous calls (VoIP to PRI)No. of Built-in VoIP Modules
    SETU VTEP 2P2125601
    LAN Port1 X 10/100/1000 Mbps Gigabit Interface
    WAN Port1 X 10/100/1000 Mbps Gigabit Interface
    VoIP ProtocolsSIP V2, SDP, RTP (RFC 2883)
    Network ProtocolsIPV6, IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
    NATSTUN and NAT Keep-Alive
    Voice CodecsG.723, G.729, iLBC 30ms & 20ms, GSM-FR, G.711 A-Law & µ-Law, GSM-EFR
    Call Progress ToneDial Tone, Ring Back Tone, Busy Tone, and Error Tone
    FAXT.38 UDPTL and Pass-Through
    Power Supply12V DC, 2A
    Power Consumption22.37 Watt (Max.)
    Dimensions (W X H X D)250.6 X 155.7 X 46 mm (Without Side Clamp) 491 X 155.7 X 46 mm (With Side Clamp)
    Mounting1U Rack Mount & Table-Top
    Operating Temperature0°C to 45°C
    Operating Humidity5 – 95% RH, Non-Condensing
    Storage Temperature-20°C to +70°C
    Storage Humidity0 – 95% RH, Non-Condensing
    View More

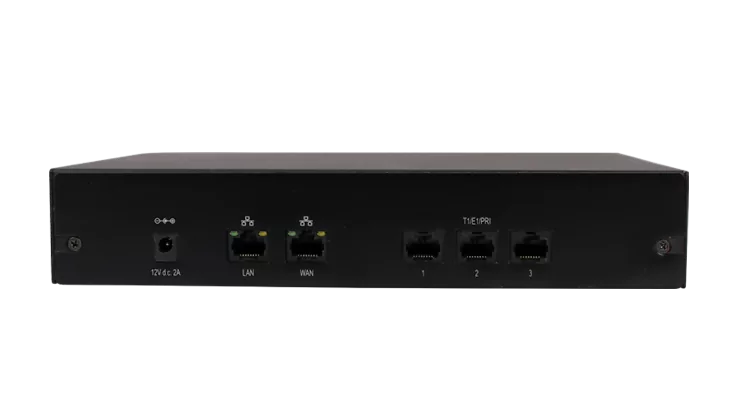

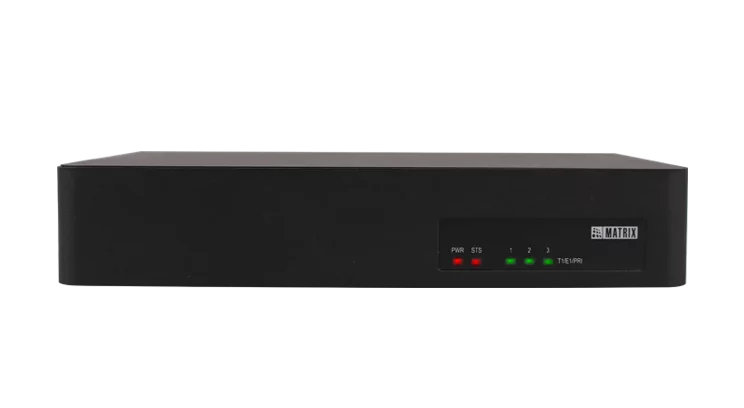

    SETU VTEP3P - VoIP PRI Gateway with 3 PRI Ports

    • 3 T1/E1 PRI Ports
    • 125 SIP Trunks
    • 90 Simultaneous Calls
    • 2 VoIP Modules
    SETU VTEP3P

    Technical Specifications

    Download
    ParticularsT1/E1 PRI PortsSIP TrunksNo. of simultaneous calls (VoIP to PRI)No. of Built-in VoIP Modules
    SETU VTEP 3P3125902
    LAN Port1 X 10/100/1000 Mbps Gigabit Interface
    WAN Port1 X 10/100/1000 Mbps Gigabit Interface
    VoIP ProtocolsSIP V2, SDP, RTP (RFC 2883)
    Network ProtocolsIPV6, IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
    NATSTUN and NAT Keep-Alive
    Voice CodecsG.723, G.729, iLBC 30ms & 20ms, GSM-FR, G.711 A-Law & µ-Law, GSM-EFR
    Call Progress ToneDial Tone, Ring Back Tone, Busy Tone, and Error Tone
    FAXT.38 UDPTL and Pass-Through
    Power Supply12V DC, 2A
    Power Consumption22.37 Watt (Max.)
    Dimensions (W X H X D)250.6 X 155.7 X 46 mm (Without Side Clamp) 491 X 155.7 X 46 mm (With Side Clamp)
    Mounting1U Rack Mount & Table-Top
    Operating Temperature0°C to 45°C
    Operating Humidity5 – 95% RH, Non-Condensing
    Storage Temperature-20°C to +70°C
    Storage Humidity0 – 95% RH, Non-Condensing
    View More

    SETU VTEP4P - VoIP PRI Gateway with 4 PRI Ports

    • 4 T1/E1 PRI Ports
    • 125 SIP Trunks
    • 120 Simultaneous Calls
    • 2 VoIP Modules
    SETU VTEP4P

    Technical Specifications

    Download
    ParticularsT1/E1 PRI PortsSIP TrunksNo. of simultaneous calls (VoIP to PRI)No. of Built-in VoIP Modules
    SETU VTEP4P41251202
    LAN Port1 X 10/100/1000 Mbps Gigabit Interface
    WAN Port1 X 10/100/1000 Mbps Gigabit Interface
    VoIP ProtocolsSIP V2, SDP, RTP (RFC 2883)
    Network ProtocolsIPV6, IPV4, TCP, UDP, DHCP, SNTP, STUN, HTTP
    NATSTUN and NAT Keep-Alive
    Voice CodecsG.723, G.729, iLBC 30ms & 20ms, GSM-FR, G.711 A-Law & µ-Law, GSM-EFR
    Call Progress ToneDial Tone, Ring Back Tone, Busy Tone, and Error Tone
    FAXT.38 UDPTL and Pass-Through
    Power Supply12V DC, 2A
    Power Consumption22.37 Watt (Max.)
    Dimensions (W X H X D)250.6 X 155.7 X 46 mm (Without Side Clamp) 491 X 155.7 X 46 mm (With Side Clamp)
    Mounting1U Rack Mount & Table-Top
    Operating Temperature0°C to 45°C
    Operating Humidity5 – 95% RH, Non-Condensing
    Storage Temperature-20°C to +70°C
    Storage Humidity0 – 95% RH, Non-Condensing
    View More
