Matrix SETU VFXTH
SETU VFXTH provides an embedded web server with a Graphic User Interface (GUI), Jeeves, for configuration.
Next-generation Conveyance Facilities
- VoIP FXO FXS Gateway with Capacity of Call Detail Records of 2000 Calls
- Caller ID Presentation on Analog Station
- High-quality Voice Conveyance over IP Networks
- Efficient Data Conveyance
Secure Communication Bridging
- Secure Communication between VoIP and Analog Networks
- VoIP Security Over SRTP/TLS Encryption
- Restrict Unwanted Calls with a List of Denied Numbers through VoIP FXO FXS Gateway
- Prevention of Unauthorized Access and Eavesdropping
TR-069 Auto-configuration
- Secure Remote Management Protocol through VOIP FXO FXS Gateway
- Supports Dynamic Service Provisioning, Firmware management, and Remote Diagnostics
- Centralized Management and Control of Gateways through VoIP FXO FXS Gateway
- Efficient Updates and Configuration Changes Over the Network
Highlight Features
Auto PSTN Fallback for Assured Connectivity
VoIP FXO FXS Gateway seamlessly switches to the PSTN (Public Switched Telephone Network) in case of network or IP connectivity issues for uninterrupted and reliable communication
01
Built-in PBX Functionality
VoIP FXO FXS Gateway integrates PBX capabilities into the gateway device for simplified call routing, advanced call handling, and enhanced communication management
02
03
04
Automatic Number Translation
VoIP FXO FXS Gateway converts and routes incoming and outgoing calls to their respective translated numbers for streamlined communication management
05
Call Detail Record
VoIP FXO FXS Gateway captures and stores detailed information about each call for monitoring, billing, and analysis purposes
06
CLI Display
Real-time caller information with VoIP FXO FXS Gateway on the connected devices for efficient call handling and personalized communication
07
Emergency Number Dialing
Direct and immediate access to emergency services through VoIP FXO FXS Gateway for enhanced safety and peace of mind
08
09
SETU VFXTH
SETU VFXTH Variants.
VoIP FXO FXS Gateway to Bridge Business Networks

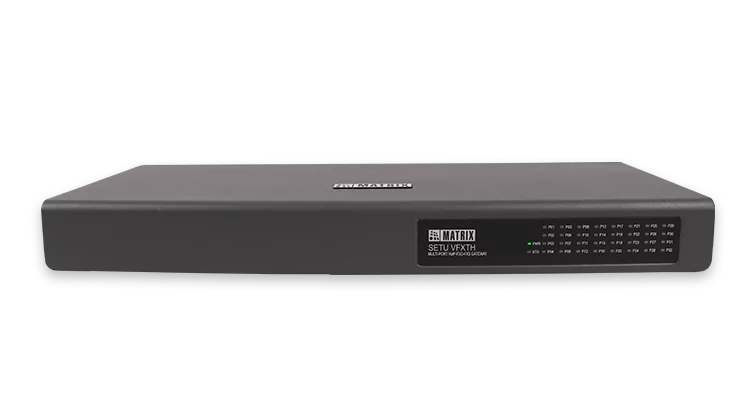

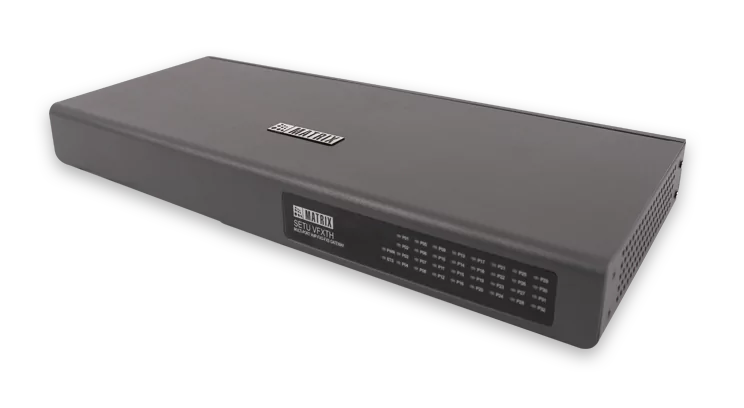

SETU VFXTH3200 - VOIP-FXO Gateway with 32 VOIP and 32 FXO Ports
- 32 VoIP Channels
- 32 FXO Ports
- DTMF and Pulse Dialing
- VoIP Port Protocol: SIPv2, SDP, RTP (RFC 2833)

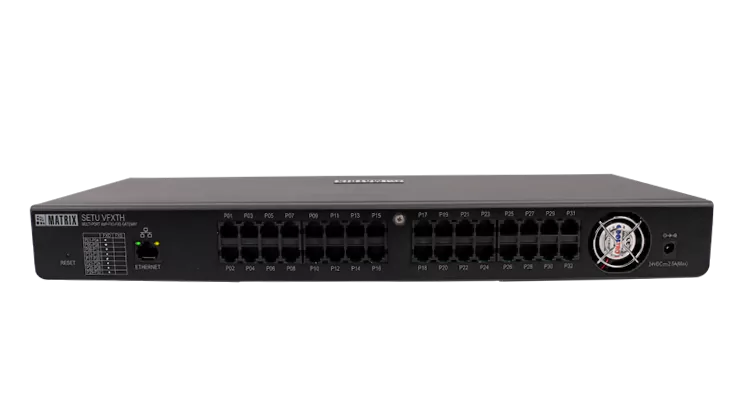

SETU VFXTH3200
Technical Specifications
| Parameters | Specifications |
|---|---|
| SIP Accounts | 32 |
| Data Network | 1 Port 10/100 Base-T (RJ45) |
| VoIP Protocol | SIPv2, SDP, RTP (RFC 2833) |
| Network Protocol | IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ |
| Voice Codecs | G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR |
| Line Echo Cancellation | G.168 with 128ms Tail Length |
| Voice Processing Techniques | Dynamic Jitter Buffer (Adaptive) Comfort Noise Generation (CNG) Voice Activity Detection (VAD) |
| Fax over IP (FoIP) | T.38 and Pass-Through |
| Quality of Service (QoS) | Layer 3 DiffServ and ToS |
| Security | SRTP/TLS over SIP |
| FXO | – |
| Signaling | Loop Start |
| Connector | RJ11 |
| Loop Limit | 1200W |
| DTMF Dialling & Reception | ITU-T Q.23 and Q.24 |
| CLI Reception | DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI |
| Return Loss | >18dB |
| Call Maturity | Delay and Polarity Reversal |
| FXS | – |
| Signaling | Loop Start |
| Connector | RJ11 |
| Loop Limit | 1800W (Max.) Excluding Telephone Set |
| DTMF Dialing & Reception | ITU-T Q.23 and Q.24 |
| CLI Reception | DTMF, FSK ITU-T V.23 and FSK Bellcore 202 |
| Return Loss | 18dB |
| POWER SUPPLY (Input) | |
| SETU VFXTH | 24V DC, 2.5A |
| POWER CONSUMPTION (Typical) | |
| SETU VFXTH | 60W |
| MECHANICAL (Dimension W x H x D) | |
| SETU VFXTH | 48.3 x 5.1 x 17.2 cms |
| WEIGHT | |
| SETU VFXTH | 1.6 Kgs (3.52 lbs) |
| OPERATING TEMPERATURE | |
| SETU VFXTH | -10°C to +50°C |
| STORAGE TEMPERATURE | |
| SETU VFXTH | -40°C to +85°C |
SETU VFXTH0032 - VoIP-FXS Gateway with 32 VoIP and 32 FXS Ports
- 32 VoIP Channels
- 32 FXS Ports
- DTMF and Pulse Dialing
- VoIP Port Protocol: SIPv2, SDP, RTP (RFC 2833)
SETU VFXTH0032
Technical Specifications
| Parameters | Specifications |
|---|---|
| SIP Accounts | 32 |
| Data Network | 1 Port 10/100 Base-T (RJ45) |
| VoIP Protocol | SIPv2, SDP, RTP (RFC 2833) |
| Network Protocol | IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ |
| Voice Codecs | G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR |
| Line Echo Cancellation | G.168 with 128ms Tail Length |
| Voice Processing Techniques | Dynamic Jitter Buffer (Adaptive) Comfort Noise Generation (CNG) Voice Activity Detection (VAD) |
| Fax over IP (FoIP) | T.38 and Pass-Through |
| Quality of Service (QoS) | Layer 3 DiffServ and ToS |
| Security | SRTP/TLS over SIP |
| FXO | – |
| Signaling | Loop Start |
| Connector | RJ11 |
| Loop Limit | 1200W |
| DTMF Dialling & Reception | ITU-T Q.23 and Q.24 |
| CLI Reception | DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI |
| Return Loss | >18dB |
| Call Maturity | Delay and Polarity Reversal |
| FXS | – |
| Signaling | Loop Start |
| Connector | RJ11 |
| Loop Limit | 1800W (Max.) Excluding Telephone Set |
| DTMF Dialing & Reception | ITU-T Q.23 and Q.24 |
| CLI Reception | DTMF, FSK ITU-T V.23 and FSK Bellcore 202 |
| Return Loss | >18dB |
| POWER SUPPLY (Input) | |
| SETU VFXTH | 24V DC, 2.5A |
| POWER CONSUMPTION (Typical) | |
| SETU VFXTH | 60W |
| MECHANICAL (Dimension W x H x D) | |
| SETU VFXTH | 48.3 x 5.1 x 17.2 cms |
| WEIGHT | |
| SETU VFXTH | 1.6 Kgs (3.52 lbs) |
| OPERATING TEMPERATURE | |
| SETU VFXTH | -10°C to +50°C |
| STORAGE TEMPERATURE | |
| SETU VFXTH | -40°C to +85°C |

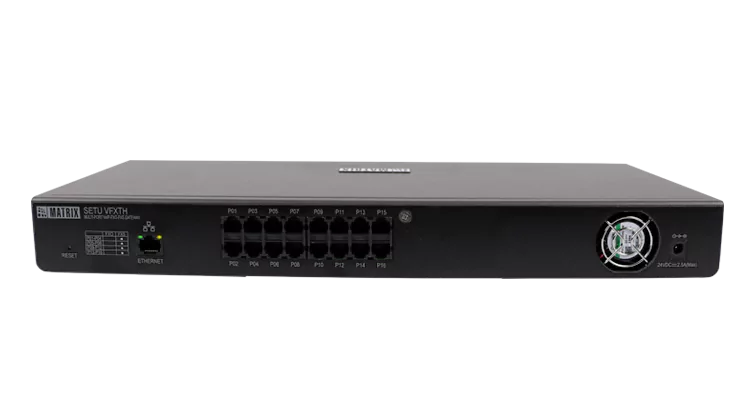

SETU VFXTH0016 - VoIP-FXS Gateway with 16 VoIP and 16 FXS Ports
- 16 VoIP Channels
- 16 FXS Ports
- DTMF and Pulse Dialing
- VoIP Port Protocol: SIPv2, SDP, RTP (RFC 2833)
SETU VFXTH0016
Technical Specifications
| Parameters | Specifications |
|---|---|
| SIP Accounts | 32 |
| Data Network | 1 Port 10/100 Base-T (RJ45) |
| VoIP Protocol | SIPv2, SDP, RTP (RFC 2833) |
| Network Protocol | IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ |
| Voice Codecs | G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR |
| Line Echo Cancellation | G.168 with 128ms Tail Length |
| Voice Processing Techniques | Dynamic Jitter Buffer (Adaptive) Comfort Noise Generation (CNG) Voice Activity Detection (VAD) |
| Fax over IP (FoIP) | T.38 and Pass-Through |
| Quality of Service (QoS) | Layer 3 DiffServ and ToS |
| Security | SRTP/TLS over SIP |
| FXO | – |
| Signaling | Loop Start |
| Connector | RJ11 |
| Loop Limit | 1200W |
| DTMF Dialling & Reception | ITU-T Q.23 and Q.24 |
| CLI Reception | DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI |
| Return Loss | >18dB |
| Call Maturity | Delay and Polarity Reversal |
| FXS | – |
| Signaling | Loop Start |
| Connector | RJ11 |
| Loop Limit | 1800W (Max.) Excluding Telephone Set |
| DTMF Dialing & Reception | ITU-T Q.23 and Q.24 |
| CLI Reception | DTMF, FSK ITU-T V.23 and FSK Bellcore 202 |
| Return Loss | >18dB |
| POWER SUPPLY (Input) | |
| SETU VFXTH | 24V DC, 2.5A |
| POWER CONSUMPTION (Typical) | |
| SETU VFXTH | 60W |
| MECHANICAL (Dimension W x H x D) | |
| SETU VFXTH | 48.3 x 5.1 x 17.2 cms |
| WEIGHT | |
| SETU VFXTH | 1.6 Kgs (3.52 lbs) |
| OPERATING TEMPERATURE | |
| SETU VFXTH | -10°C to +50°C |
| STORAGE TEMPERATURE | |
| SETU VFXTH | -40°C to +85°C |

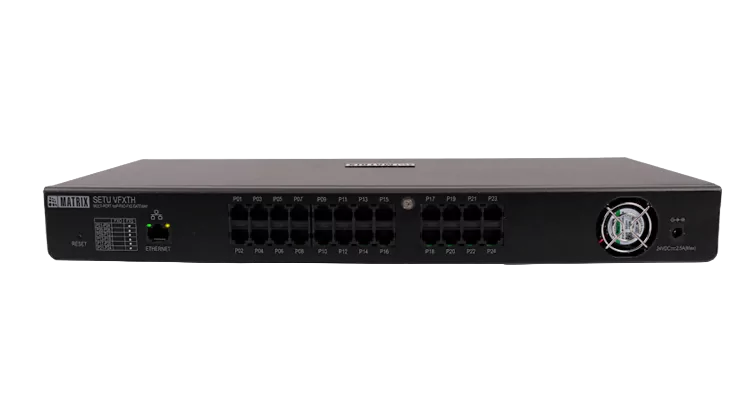

SETU VFXTH0024 - VoIP-FXS Gateway with 24 VoIP and 24 FXS Ports
- VoIP-FXO-FXS Gateway with 24 VoIP and 24 FXS Ports
- DTMF and Pulse Dialing
- VoIP Port Protocol: SIPv2, SDP, RTP (RFC 2833)
SETU VFXTH0024
Technical Specifications
| SIP Accounts | 32 |
|---|---|
| Data Network | 1 Port 10/100 Base-T (RJ45) |
| VoIP Protocol | SIPv2, SDP, RTP (RFC 2833) |
| Network Protocol | IPv4, TCP, UDP, PPPoE, DHCP Server & Client, SNTP, NAT, STUN, HTTP, DynDNS, Port Forwarding and DMZ |
| Voice Codecs | G.711 A/µ-Law, G.723.1, G.729AB, iLBC, GSM-FR |
| Line Echo Cancellation | G.168 with 128ms Tail Length |
| Voice Processing Techniques | Dynamic Jitter Buffer (Adaptive) Comfort Noise Generation (CNG) Voice Activity Detection (VAD) |
| Fax over IP (FoIP) | T.38 and Pass-Through |
| Quality of Service (QoS) | Layer 3 DiffServ and ToS |
| Security | SRTP/TLS over SIP |
| FXO | – |
| Signaling | Loop Start |
| Connector | RJ11 |
| Loop Limit | 1200W |
| DTMF Dialling & Reception | ITU-T Q.23 and Q.24 |
| CLI Reception | DTMF, FSK ITU-T V.23 and FSK Bellcore 202, TEL URI |
| Return Loss | >18dB |
| Call Maturity | Delay and Polarity Reversal |
| FXS | – |
| Signaling | Loop Start |
| Connector | RJ11 |
| Loop Limit | 1800W (Max.) Excluding Telephone Set |
| DTMF Dialing & Reception | ITU-T Q.23 and Q.24 |
| CLI Reception | DTMF, FSK ITU-T V.23 and FSK Bellcore 202 |
| Return Loss | >18dB |
| POWER SUPPLY (Input) | |
| SETU VFXTH | 24V DC, 2.5A |
| POWER CONSUMPTION (Typical) | |
| SETU VFXTH | 60W |
| MECHANICAL (Dimension W x H x D) | |
| SETU VFXTH | 48.3 x 5.1 x 17.2 cms |
| WEIGHT | |
| SETU VFXTH | 1.6 Kgs (3.52 lbs) |
| OPERATING TEMPERATURE | |
| SETU VFXTH | -10°C to +50°C |
| STORAGE TEMPERATURE | |
| SETU VFXTH | -40°C to +85°C |
