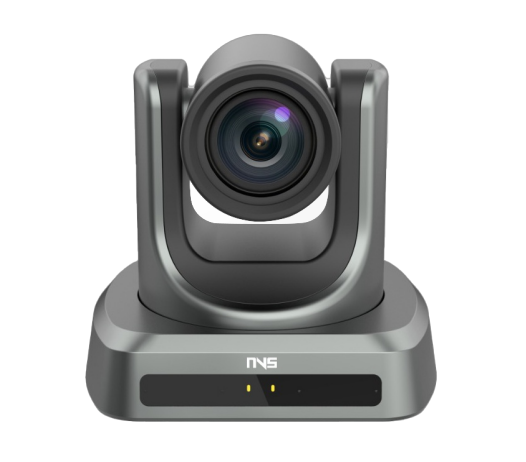

NVS-UC600065CA
4K Ultra HD PTZ conference Camera with 12x optical zoom, HDMI, IP & USB
High-Resolution Imaging
The NVS-UC600065CA boasts a 4K Ultra HD resolution, ensuring crisp and detailed images. Coupled with a 12x optical zoom, this camera can capture subjects from a distance while maintaining exceptional clarity and color accuracy. This makes it ideal for applications like video conferencing and live streaming where precise image quality is essential.
Intelligent Auto Tracking
One of the standout features of this camera is its auto tracking capability. The camera can automatically follow the speaker, eliminating the need for manual PTZ adjustments. This simplifies the video conferencing experience for coordinators and ensures that presenters remain in frame throughout the meeting.
Versatile Connectivity
The NVS-UC600065CA offers multiple connectivity options, including HDMI, IP, and USB. This ensures compatibility with a wide range of video conferencing platforms and software, making it a flexible choice for various professional applications.
Highlight Features
High-quality frames
Experience stunning visuals with ultra-high-definition resolution, providing four times the detail of 1080p.
01
12x Optical Zoom
Capture subjects from a distance without compromising image quality, providing flexibility and versatility in various settings.
02
Sleek and elegant design
A visually appealing and sophisticated appearance that complements any modern environment.
03
NVS-UC600065CA
Technical Specifications
| Model | NVS-UC600065CA |
|---|---|
| Video System | 4K30, 4K25, 1080P30, 1080P25 |
| Sensor | 1/2.5-inch, CMOS, Effective Pixel: 8.51M |
| Lens | 12x, f=4.4mm ~ 52.8mm, F1.8 ~ F2.6 |
| Shutter | 1/30s ~ 1/10000s |
| White Balance | Auto, Indoor, Outdoor, One Push, Manual, VAR |
| SNR | ≥55dB |
| Pan/Tilt Angle | Pan: ±170° (Maximum Speed: 35.7°/s); Tilt: -30° ~ +90° (Maximum Speed: 31.5°/s) |
| Preset Position/Accuracy | 255/0.1° |
| Operating System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android |
| Video Format | YUY2: 1440P@30fps (max.); H.264 AVC: 2160P@30fps (max.) |
| USB Video Communication Protocol | UVC 1.1 |
| Encoding | H.265/ H.264 |
| First Stream | 3840x2160, 1920x1080, 1280x720, 1024x576, 960x540, 640x480, 640x360 |
| Second Stream | 640x360, 480x272, 320x240, 320x180 |
| Video Bit Rate | First Stream: 32Kbps ~ 20480Kbps; Second Stream: 32Kbps ~ 6144Kbps |
| Frame Rate | 50Hz: 1fps ~ 25fps; 60Hz: 1fps ~ 30fps |
| Audio Bit Rate | 96K, 128K, 25K |
| Protocol | TCP/IP, HTTP, RTSP, RTMP(S), ONVIF, DHCP, SRT (MJPEG format is not supported), Multicast, etc. |
| Communication Interface | 1 x RS232 IN: 8pin Min DIN, Max. Distance: 30m, Protocol: VISCA/Pelco-D/Pelco-P 1 x RS485: 2pin phoenix port; Max. Distance: 1200m; Protocol: VISCA/Pelco-D/Pelco-P |
| Power Interface | JEITA type (DC 12V)/USB Type-C (USB 5V)/PoE |
| Input Voltage | DC12V/ DC5V/ PoE (802.3af) |
| Input Current | 12V 1.0A (max.)/5V 1.5A (max.) |
| Operating Temperature | 0°C ~ 40°C |
| Storage Temperature | -40°C ~ 60°C |
| Power Consumption | 18W (max.) |
| Weight | 1.4 Kg |
| Dimension | 144 x 144 x 173.4 mm |
