High-Performance Network Video Recorders

High-Performance Network Video Recorders

Matrix NVRs offer intelligent video analytics features, such as motion detection, object classification, and tamper detection, which can help you to identify and respond to security incidents quickly.

Centralized Monitoring
  • Link up to 20 Network Video Recorders via a Master and Slave Configuration with Cascading Feature
  • Centrally Monitor 1000+ Cameras Connected to any Network Video Recorder in the Loop
  • View Real-time Footage of any Camera Attached to any NVR in the Loop
  • Saves Server and Software Cost
  • Easy Local and Remote Monitoring
  • Matrix NVR P2 offer up to 1 GBPS Throughput (Variant-specific; refer datasheet)
  • High Throughput Accelerates Data Processing and System Responsiveness
  • Network Video Recorders Enable Streaming from Multiple Cameras at Higher Resolutions
  • Supports Multiple-user Logins without Compromising Performance
  • Facilitates Multiple Operation Executions, Ensuring Efficient System Functionality
  • Fanless and Ventless Design of NVRXS Reduces their Susceptibility to Dust, Wear, and System Malfunctions.
  • Fanless and Ventless Design Promotes a Longer, Dependable System Life
  • Matrix Network Video Recorder Supports 4K Video Decoding Seamlessly
  • Up to 12 MP Resolution Recording to Achieve Superior Video Clarity and Detail

Features


Storage Support

Enhance video storage with up to 144 TB (variant-specific; see data sheet), ensuring reliable storage for extended durations while maintaining quantity and quality

01

Remote Monitoring using P2P

Remote Monitoring via P2P in NVRs offers simplicity, real-time access, and user-friendly connectivity. P2P eliminates complex setups, enabling easy remote access without advanced networking expertise

02

Camera wise Recording Retention

NVR XS allows customized recording retention, optimizing storage for critical data. This feature enhances data security and ensures user convenience by tailoring storage duration for individual cameras

03


Optimized Storage

Adaptive Recording prioritizes recording activity periods at higher bitrates and no-activity periods at lower bitrates while Smart Recording assigns bit rates based on stream importance

04

Inbuilt DHCP Server

The inbuilt DHCP server in Network Video Recorders automates IP address assignment, streamlining network setup for efficiency, time-saving, and user-friendly configuration, reducing the likelihood of configuration conflicts.

05


Instant Notifications and Alerts

Set up IVAs, storage, and recording alerts to trigger actions and receive SMS, email, and buzzer notifications for immediate response and enhanced situational awareness

06


RAID Support

NVRX P2 minimizes disk failure risks through RAID 0,1,5,10 (Variant Specific; See Datasheet) support, providing higher data security, improved performance, fault tolerance, and ensured data reliability

07


H.265 Compression Technology

H.265, the latest video codec standard, halves the bit rate compared to H.264, maintaining image quality. Advantages include up to 57% bandwidth and storage reduction, better compression performance, and improved quality

08


Proactive Video surveillance

NVRX P2 enhances security with instant event detection, notifications, and flexible configurations. Automatic responses, real-time alerts, and greater control ensure increased security, user convenience, and faster responses

09

High-Performance Network Video Recorders

High-Performance Network Video Recorders Variants

Built with Robust Storage Technology

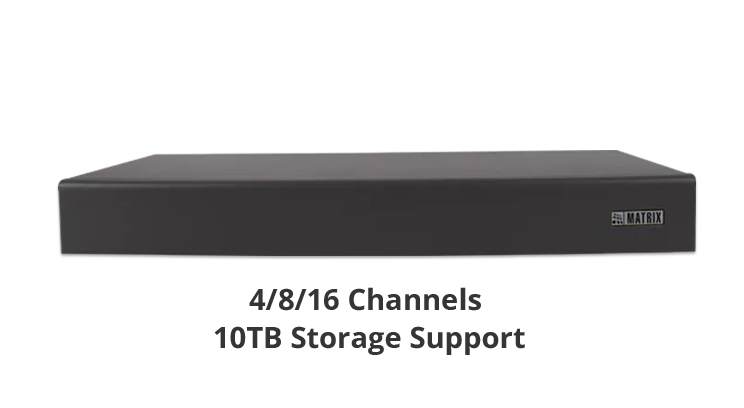

Network Video Recorders for Small Organizations

  • 4/8/16 Channel
  • 1 SATA Port, 10TB Storage Support
  • 360 Mbps Throughput Capacity
  • Single Disk RAID Support
  • NDAA Compliant
Compact NVRXS

Technical Specifications

Download
VIDEO
Input4/8/16 IP Channels
OutputHDMI (2.0) – 1 Port (Main)
CompressionH.265/H.264/ Motion JPEG
AUDIO
CompressionG.711µ
THROUGHPUT
Downlink Throughput180 Mbps
The following Scenarios are Considered:
1. Cameras Streaming to Device
2. Cameras of Cascaded Devices being Viewed on HDMI
3. Streaming from NAS for local/web client
Downlink Throughput 213 Mbps
The following scenarios are considered:
1. Cameras Streaming to Device
2. Cameras of Cascaded Devices being Viewed on HDMI
3. Recording in Local HDDs, No NAS Connectivity
Uplink Throughput180 Mbps
The following scenarios are considered:
1. Cameras streaming to the web client
2. Storage or backup to NAS
3. Streaming to VMS
Uplink Throughput 205 Mbps
The following scenarios are considered:
1. Cameras Streaming to Web Client
2. NVR streaming to cascaded NVRs/VMS
Simultaneous Log-in 9+1(Admin)
DISPLAY
Digital Zoom on LiveYes
SnapshotYes
Multiple Camera Viewing Through Cascading (up to 20 Devices)
OSDChannel Number and Name, Status, Video Loss, Recording, and Disabled Channel (As per camera support)
RECORDING
Image Resolution 12MP, 8MP, 5MP,3MP, 2MP, 720P, D1, CIF
Pre-RecordUp to 30 Sec
Post-Record10-300 Sec
Snapshot FormatJPEG
Recording Format AVI, Native
Recording TypesScheduled, Manual, Alarm, and COSEC
STORAGE AND BANDWIDTH OPTIMIZATION
Adaptive RecordingAutomatically Reduces the Number of Frames Captured per Second Where There is No Motion, Thereby Saving Storage Space.
Bandwidth OptimizationAutomatically Adapts Optimized Resolution on Local Display Through HDMI
PLAYBACK AND BACKUP
Synchronous Playback16 Channels @ 1080P (via HDMI)
Search ModeDate and Time, Camera, Recording Type, Recording Drive
BackupManual Backup over USB and NAS, Scheduled Backup over USB, NAS and FTP,
Scheduled Backup over USB through USB 2.0 interface, Manual Backup over USB
through USB 3.0 interface, Quick Backup over USB, NAS and Local PC
Configuration BackupYes
Network ProtocolsTCP/IP, DHCP, PPPOE, DDNS, Free Matrix DNS, FTP, SMTP, NTP, RTP/RTSP, CIFS/NFS, Network Acceleration, UDP
Maximum User128
Remote Operation Monitor, PTZ Control, Playback, System Setting, File Download, Log Information, Upgrade
EVENTS AND ACTION
Trigger EventsMotion Detection, View Tampering, Trip Wire, Object Intrusion, Audio Exception, Missing
Object, Suspicious Object, Loitering, Object Counting, Recording Start, Recording Fail,
Camera Offline, Camera Online
System EventsManual Trigger, On Boot Alarm, Storage Alert, Disk Volume Full, Disk Fault, Scheduled Backup Fail
ActionsRecording on Selected Channel, Upload Images on FTP/ Email Server, Email Notification
with Snapshot, TCP Notification, Recall PTZ Preset Position, Turn On/Off Alarm Outputs,
Buzzer Notification, SMS Notification, Calling from Mobile App
STORAGE INTERFACE
SATA Interface1 SATA III (10TB per port)
NAS2 NAS (CIFS, NFS)
USB1 TB USB DriveRAID
RAIDSingle Disk
RetentionCamera-wise, HDD usage % wise, Day wise

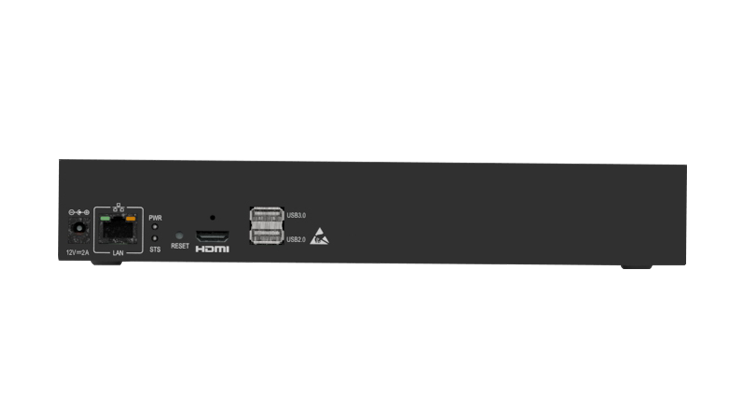

INTERFACES
Network Interface1 Port x Ethernet (RJ-45) 10/100/1000Mbps
USB2 Ports (1x USB 3.0, 1x USB2.0)
LEDSystem Status LED, Power LED
Reset SwitchYes
BuzzerYes
SYSTEM INTERFACE
ProcessorQuad-core 64-bit Cortex-A55 processor
RAM2GB
Flash4GB
OSEmbedded Linux
Control ModeMouse, Web Client, and Mobile Client
CAMERA SUPPORT
Third Party Camera SupportCameras with ONVIF 2.0 and above
ENVIRONMENT CONDITIONS
Operating Temperature0°C to +45°C (32°F to 104°F)
Humidity Range5% to 95% RH Non-Condensing
ELECTRICAL AND MECHANICAL
Power InputAdapter 12V DC/2A
Dimension(L×B×H) in mm266 X 157 X 44 mm
Weight (without hard disk)490 gm approx
View More

Network Video Recorders for Mid-size Installations

  • 8/16/32/64/96 Channel
  • 1/2/4/8 SATA Ports, 10TB/18TB Storage Support for Each
  • 360/512 MBPS & 1 GBPS Throughput Capacity
  • RAID 0/1/5/10 Support
  • NDAA Compliant
Extreme NVRX

Technical Specifications

Download
VIDEO
Input8/16/32/64/96 IP Channels
OutputHDMI (2.0) – 1 Port (Main)
CompressionH.265/H.264/ Motion JPEG
AUDIO
Input1 Channel, RCA Port(2.0Vp-p), Range (-2dBu to 22dBu)
Output1 Channel, RCA Port Mono, Unbalanced output, (2.0Vp-p), Range (-2dBu to 22dBu)
CompressionG.711µ
Two-way Audio Yes
THROUGHPUT
Downlink Throughput 180/256/512 MBPS (Variant Specific; refer Datasheet)
Uplink Throughput180/256/512 MBPS (Variant Specific; refer Datasheet)
Simultaneous Log-in 9+1(Admin)
DISPLAY
Split (Through LAN/HDMI) 1×1, 2×2, 3×3, 4×4, 1+5, 1+7, 3+4, 2+8, 1+12, 1©+12, 1+9, 4+9,2+12, 5×5, 6×6, 8×8 and Sequential
Local Decoding4x 4K/ 10x 3MP/ 16x 1080p/ 64 x D1
SnapshotYes
Multiple Camera ViewingThrough Cascading (up to 20 Devices)
OSDChannel Number and Name, Status, Video Loss, Recording, and Disabled Channel
(As per camera support)
RECORDING
Image Resolution12MP, 8MP, 5MP,3MP, 2MP, 720P, D1, CIF
Pre-Record Up to 30 Sec
Post-Record 10-300 Sec
Snapshot Format JPEG
Recording FormatAVI, Native
Recording TypesScheduled, Manual, Alarm, and COSEC
STORAGE AND BANDWIDTH OPTIMIZATION
Adaptive RecordingAutomatically Reduces the Number of Frames Captured per Second Where There is No
Motion, Thereby Saving Storage Space.
Bandwidth OptimizationAutomatically Adapts Optimized Resolution on Local Display Through HDMI
PLAYBACK AND BACKUP
Synchronous Playback16 Channels @ 1080P (via HDMI)
Search ModeDate and Time, Camera, Recording Type, Recording Drive
BackupManual Backup over USB and NAS, Scheduled Backup over USB, NAS and FTP,
Scheduled Backup over USB through USB 2.0 interface, Manual Backup over USB
through USB 3.0 interface, Quick Backup over USB, NAS and Local PC
Configuration BackupYes
Network ProtocolsTCP/IP, DHCP, PPPOE, DDNS, Free Matrix DNS, FTP, SMTP, NTP, RTP/RTSP, CIFS/NFS,
Network Acceleration, UDP
Maximum User128
Remote OperationMonitor, PTZ Control, Playback, System Setting, File Download, Log Information, Upgrade
EVENTS AND ACTIONS
Trigger Events Motion Detection, View Tampering, Trip Wire, Object Intrusion, Audio Exception, Missing
Object, Suspicious Object, Loitering, Object Counting, Recording Start, Recording Fail,
Camera Offline, Camera Online
System EventsManual Trigger, On Boot Alarm, Storage Alert, Disk Volume Full, Disk Fault, Scheduled
Backup Fail
ActionsRecording on Selected Channel, Upload Images on FTP/ Email Server, Email Notification
with Snapshot, TCP Notification, Recall PTZ Preset Position, Turn On/Off Alarm Outputs,
Buzzer Notification, SMS Notification, Calling from Mobile App
STORAGE INTERFACE
SATA Interface Up to 8 SATA III (10TB per port), 1 SATA Port – NVR0801X, NVR1601X
2 SATA Ports – NVR1602X, NVR3202X
4 SATA Ports – NVR3204X, NVR6404X
8 SATA Ports – NVR6408X
NAS 2 NAS (CIFS, NFS)
USB1 TB USB Drive
RAIDSingle Disk – NVR0801X, NVR1601X, RAID 0,1 – NVR1602X, NVR3202X, RAID 0,1,5,10 – NVR3204X,
NVR3204X, NVR6404X, NVR6408X, NVR9608X
RetentionCamera-wise, HDD usage % wise, Day wise
INTERFACES
Network Interface1 Port x Ethernet (RJ-45) 10/100/1000Mbps – NVR0801X, NVR1601X
2 Ports x Ethernet (RJ-45) 10/100/1000Mbps- NVR1602X, NVR3202X
USB3 Ports (1x USB 3.0, 2x USB2.0)
LEDSystem Status LED, Power LED
Alarm Input2
Alarm Output1
Reset SwitchYes
BuzzerYes
SYSTEM INTERFACE
ProcessorARM Cortex A17 Quad-Core
RAM2GB/4GB (Variant Specific; refer Datasheet)
Flash2GB/4GB (Variant Specific; refer Datasheet)
OSEmbedded Linux
Control ModeMouse, Web Client, and Mobile Client
CAMERA SUPPORT
Third Party Camera SupportCameras with ONVIF 2.0 and above
ENVIRONMENT CONDITIONS
Operating Temperature0°C to +50°C (32°F to 122°F)
Humidity Range 5% to 95% RH Non-Condensing
ELECTRICAL AND MECHANICAL
Power InputSMPS (100-240-volt AC)
Dimension(mm) (W×H×D)320 × 45.85 × 195.5 – NVR0801X, NVR1601X, 425.5 × 54.6 × 196 – NVR1602X, NVR3202X,
442 × 105.75 × 240.45 – NVR3204X, NVR6404X, 442 × 105.75 × 355.45 – NVR6408X
Weight (Kg) 1.38 kg – NVR0801X, NVR1601X, 1.68 kg – NVR1602X, NVR3202X,
3.88 kg – NVR3204X, NVR6404X, 5.68 kg – NVR6408X
View More

Ordering Information

SATATYA NVRXCTSDescriptionIP ChannelsSATA Ports
(10TB each)		Audio RCA (I/O)Alarm (I/O)
SATATYA NVR0401XS4 Channel NVR with 1 SATA Port0401NN
SATATYA NVR0801XS8 Channel NVR with 1 SATA Port0801NN
SATATYA NVR1601XS16 Channel NVR with 1 SATA Port1601NN
