Enterprise NVR
Matrix Enterprise Network Video Recorders (ENVRs) – 32 Channel Enterprise NVR with 8 SATA Port is a turnkey solution for video management and surveillance.
NVRs with Enterprise Class Hardware and Software
- Video Management Software Platform Built on Enterprise-grade Server and Storage Hardware
- Up to 255 Channel Support on a Single Platform
- Up to 432 TB (18TB per SATA Port) to Record and Store UHD and HD streams
- Hardware RAID 0/1/5/6/10/50/60 Support
- Comprehensive Surveillance Solution for Mid-size and Large-scale Enterprises
- Hot-swappable Front HDD Bay
NVRs Preloaded with Video Management Software
- NVRs with Preloaded Video Management Software (VMS), Operating System, and Database
- Comes with SATATYA SAMAS Platform License and Built-in License Dongle
- No Need to Invest Separately in Software, Server, and NVR
- Seamless Surveillance with Remote Viewing, Centralized Management, Mobile Access, and Multi-stream Support
- Instant Notifications via SMS and E-mail for Real-time Awareness and Proactive Monitoring
Redundant - Recording, Network, Storage, and Power Supply
- Failover ISP Support for Communication During Network Outages
- Redundant and Hot-plug Dual Power Supply for Uninterrupted Surveillance During Power Failure
- N:1 Redundant/ Failover Recording Server for Continuous Operation in Case of Recording Server Failure
- Fault-tolerant Recording at SD Card Combats Storage-related Disruptions
- Minimal Downtime for Reliable Security
Features
Interoperability
Enterprise NVR seamlessly integrates with Matrix IP cameras and third-party models supported by ONVIF profiles S and G, using RTP/RTSP protocol for enhanced compatibility
01
02
03
Intelligent Video Analytics
Integrate License Plate Recognition, Perimeter Security IVAs (e.g., Trip Wire, Motion Detection), Vehicle Parking Management, and Evidence-based Weighbridge solutions for comprehensive surveillance
04
05
Integration with Matrix Access Control Devices
API-level integration with Matrix Access Control devices, offering two-way authentication (Biometric + Vehicle ANPR) and detailed reports
06
Robust Recording and Storage
Utilizing a robust 64-bit .Net framework with RAM-based pre-buffer, the system offers smooth operation and faster data processing for seamless video recording and storage management
07
Perceptive Monitoring
The central solution for Live View, Playback, and real-time event monitoring includes Dashboard, Alarms, E-maps and Investigator. Features synchronous/asynchronous IPC video export, two-way audio, multi-layer E-Map, and post-event analysis tools
08
Playback and Investigation
Ensure secure evidence storage with an Evidence lock and Bookmark feature, overriding retention policies. Enhance search capabilities with date/time, timeline, smart motion search, and calendar view
09
Enterprise NVR
Enterprise NVR Variants
Server-grade Network Video Recorders with Inbuilt Video Management Software
Server-Based Video Management Software Platform for Medium and Large Enterprises
- Comes with SATATYA SAMAS PLT License and Built-in License Dongle
- Built-in 5 IP Channels, Expandable Up to 255 IP Camera Software Licenses
- 2U/ 3U/ 4U Chassis with 08/16/24 Bay SATA Channels
- Up to 432 TB Storage Capacity (18TB per SATA Channel)
- RAID 0/1/5/6/10/50/60 Support
Enterprise Network Video Recorders NVRXCTP
Technical Specifications
| HARDWARE | |||
|---|---|---|---|
| VMSP2020XCTP | VMSP3020XCTP | IP65 | |
| Processor – CPU | Intel Xeon Processor E-2356G – 6Core @3.2 GHz | Intel Xeon CPU Silver 4314 – 16Core @2.4 GHz | Intel Xeon CPU Silver 4314 – 16Core @2.4 GHz |
| Memory | 32GB DDR4 | 64GB DDR4 | 64GB DDR4 |
| SATA 3.0 Channels | 8 Bay | 16 Bay | 24 Bay |
| PCIe Type | 2 PCIe3.0 x8, 1 PCIe4.0 x8, 1 PCIe4.0 x16 | 4 PCIe4.0 x16, 3 PCIe4.0 x8 | 4 PCIe4.0 x16, 3 PCIe4.0 x8 |
| Video Display | 1x HDMI On Board | Only x1 VGA On Board From GPU GTX1650, 1 DP, 1 HDMI, 1 DVI | Only x1 VGA On Board From GPU GTX1650, 1 DP, 1 HDMI, 1 DVI |
| Chassis | 2U Chassis with 12G | 3U Chassis with 12G SAS Expander Plane | 4U Chassis with 12G SAS Expander Plane |
| Hot Swap HDD Bays | 8 SATA3.0 HDD/ SSD 3.5″ or 2.5″ | 16 SATA HDD/ SSD 3.5″ or 2.5″ | 24 SATA HDD/ SSD 3.5″ or 2.5″ |
| Graphic Card | Aspeed AST2600 with 64MB VRAM | GPU GTX1650 4GB GDDR6 | GPU GTX1650 4GB GDDR6 |
| OS Drive | Enterprise-grade M.2 SSD 240GB | ||
| RAID Controller (Inbuilt) | Broadcom Up to 12G SAS per port 1GB (Hardware RAID) | ||
| RAID Support | RAID 0/1/5/6/10/50/60 | ||
| NAS | Upto 19 NAS | ||
| NETWORK MANAGEMENT, INTERFACES, AND SECURITY | |||
| Network | 2x 10GbE RJ45 – VMSP2020XCTP 2x 10GbE Port and 2x 1GbE Port – VMSP3020XCTP 2x 10GbE Port and 2x 1GbE Port – VMSP4020XCTP | ||
| Server Management | Dedicated 1 GbE RJ45 Port, Variant-Specific; Refer Datasheet | ||
| Sensor In/ Alarm Out | Yes, through Sensor Controller Panel Lite Device | ||
| Security | TPM Header support | ||
| SOFTWARE | |||
| Operating System | Microsoft Windows 10 IoT Enterprise LTSC HIGH END | ||
| Event Database | Microsoft SQL Server Express Edition (up to 10 GB of Storage) | ||
| Software | Video Management Software – SATATYA SAMAS Platform | ||
| VIDEO SURVEILLANCE MANAGEMENT | |||
| IP Camera Channels | Built-In 5 IP Channels (User Can Expand Up to 255 IPC Using SAMAS Software Cam Licenses) | ||
| Resolution Support | 12MP, 8MP, 5MP, 3MP, 2MP, 720P, D1, CIF | ||
| Compression | H.265, H.264, MJPEG | ||
| Onvif Profile Support | Onvif S and G | ||
| IP Camera Supports | Matrix Brand, Third Party – Onvif Profile S and G Supported (version 2.2 and above) | ||
| Active Directory Support | Yes | ||
| User Roles and Rights | Yes | ||
| DISPLAY | |||
| Split (Through LAN/HDMI) | 1×1, 2×2, 3×3, 4×4, 5×5, 6×6, 8×8, 1+3, 1+5, 1+7 and Sequential Views and Windows Sequence | ||
| Local Decoding | 1x 4K/ 4x 1080P/ 16 x D1 @H.264 | ||
| Digital Zoom on Live | Yes | ||
| Snapshot | Yes | ||
| OSD | Channel Number and Name, Status, Video Loss, Recording and Disabled Channel (As Per Camera Support) | ||
| RECORDING AND STREAMING | |||
| Simultaneous Login | Default: 5 | ||
| Pre-Record | Up to 30 Sec | ||
| Post-Record | Up to 30 Sec | ||
| Snapshot Format | JPG | ||
| Recording Format | Native | ||
| Recording Types | Continuous, Manual, Alarm and Motion Detection | ||
| Special Recording | Time Lapse Recording and Day-Highlights | ||
| Stream Configuration | Stream Parameters, CODECs, Resolution, FPS and GOP | ||
| FPS | 1-60 | ||
| GOP | 1-120 | ||
| Stream Usage | Viewing, Recording, and Analytics | ||
| Adaptive Recording | Automatically Reduces the Number of Frames Captured Per Second Where There is No Motion, Thereby Saving Storage Space | ||
| INTEGRATED PLATFORMs Over Network | |||
| Redundant Service | Yes. Storage & Recording Services (N+1) & power supply | ||
| Failover Service | Yes. Recording Services (N+1) & Network ISP Service (1+1) | ||
| Matrix IVA Service | Yes (Basic and Advanced IVAs, ANPR, Parking Management & More Over Ethernet) | ||
| Business Application | SAP, ERP, and POS | ||
| Access Control System | Yes. Matrix COSEC Server and COSEC PANEL LITE for Aux I/O Integrations | ||
| Streaming Services | Yes. For Integrations with Third Party IVA and Investigation Agency | ||
| VMSP Clients | Desktop Client: SATATYA Smart Client, Video Wall Client Mobile Clients for Android and i-OS Devices | ||
| PLAYBACK AND BACKUP | |||
| Synchronous Playback | 16 channels @ 1080P (via Ethernet), 4-channel @ 1080P (Media player) | ||
| Search Mode | Date and Time, Camera, Recording Type | ||
| Playback Modes | Fast Forward (up to 16x), Fast Reverse (up to 16x), Next frame, Previous frame | ||
| Backup and Archive | 3 Levels, Video Grooming Technology | ||
| Network Protocol | TCP/IP, DHCP, FTP, SMTP, RTP/RTSP, CIFS/NFS, UDP, LDAP | ||
| Maximum User | 99+1 (Admin), users can be added with an additional license | ||
| Remote Operation | Monitor, PTZ Control, Playback, System Setting, File Download, Log Information, | ||
| PERCEPTIVE MONITORING | |||
| Hierarchical E-map | Yes | ||
| Alarm Management | Yes (Report, Acknowledge, Close & Alarm Logs) | ||
| System Health Dashboard | Yes | ||
| Investigator | Video Content Analysis on Recorded Video (Over Network Client) | ||
| One Click Control | IPC view, Recording Status, Health, Snapshot, Manual Recording, Digital Zoom In and Out, Change Stream, Share Live View | ||
| On Screen PTZ Control | Yes, using Virtual PTZ Joystick | ||
| SURVEILLANCE LOGS | |||
| Logs | Event Logs, Audit Trails, Alarm Logs and Online User information | ||
| Reports | Summary Report, Downtime Analysis Report, Evidence Reports, System Health Reports | ||
| Report Scheduler | Yes (Daily, Weekly, Monthly) | ||
| EVENTS AND ACTION | |||
| EVENTS | Video Surveillance Events, System Events, User Events, Audit Trails Events | ||
| Action | Recording on Selected Channel, Upload Images on FTP/Email server, Email Notification with Snapshot, Trigger IVA, Recall PTZ Preset Position, Turn On/Off Alarm Outputs, Buzzer Notification, SMS Notification, Calling from Mobile App, Share files data, Trigger Aux Output | ||
| ELECTRICAL | |||
| Input Voltage | 100/240 VAC, 10-5A at 50/60 Hz – Dual Input – VMSP2020XCTP, 100-240VAC, 10-8A- Dual Input – VMSP3020XCTP, 200-240VAC, 8.0A – Dual Input – VMSP4020XCTP | ||
| MECHANICAL | |||
| Dimension (D x W x H) | 625 x 482.6 x 87mm (24″ x 19″ x 3.5″) Rack Mount – VMSP2020XCTP, 655.3 x 432 x 132 (mm) 27.8” x 17” x 5.2” – VMSP3020XCTP, 699.0 x 432.0 x 175.8 (mm) 27.52” x 17.00” x 6.92” – VMSP4020XCTP | ||
| SYSTEM SETUP | |||
| LED Indication | System Power, Ethernet Connection, SATA Connectivity | ||
| Power On & Reset Switch | Yes | ||
| For More Information on Software Part | Please refer to the VMS SAMAS Datasheet. | ||
| Important Notice | This Product uses ‘Microsoft Windows 10 IoT Enterprise Version” as an Operating System. So, the server can not be used as a general-purpose application other than VMSP servers. The included Microsoft Windows Operating System must only be used together with the Product (VMSP servers) and must hence not be used on any other computer hardware. The terms and conditions for the use of the Microsoft Windows Operating System are regulated by Microsoft’s End User License Agreement and it is accepted by the End User (“Customer purchasing the VMSP Product”). | ||
Ordering Information
| SATATYA NVRXCTS | Description | Chassis | IP Channels | Storage |
|---|---|---|---|---|

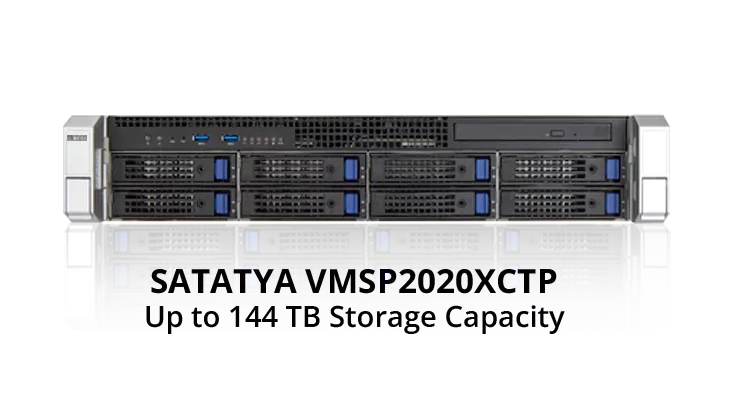

| SATATYA VMSP2020XCTP | PCM/TDM, Digital Switching, 100% Non-blocking | 2U | Up to 255 Channels | Up to 144TB |
| SATATYA VMSP3020XCTP | Video Management Software Platform with 16 SATA Ports | 3U | Up to 255 Channels | Up to 288TB |
| SATATYA VMSP4020XCTP | Video Management Software Platform with 24 SATA Ports | 4U | Up to 255 Channels | Up to 432TB |
