COSEC VEGA FAX
High-Performance Biometric Door Controller Equipped for High Security Applications
Multiple User Credentials
- Biometric: Finger
- Pin and RFID Cards
- Mobile through BLE
- Dual Verification for High-Security Applications
Multiple Connectivity Options
- Built-in Bluetooth, Wi-Fi, PoE, Ethernet, GSM/VoLTE Options
- Use Existing IT Infrastructures to Meet Future Requirements
- Low IT Infrastructure Cost and Future Proof
Higher User and Template Capacity
- Stores up to 50,000 User Profiles
- Fingerprint Template Capacity up to 9,600 in 1:N Mode
- Fingerprint Template Capacity up to 1,00,000 in 1:1 Mode
- Event Log Capacity of 5,00,000
Features
Secured Communication
Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof
01
Auxiliary Devices Interface
Allow seamless connection of fire alarm as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware
02
Tamper Detection
Provide better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for devices
03
Pluggable Card Reader Module
Enable easy customization, as card modules can be changed according to the user's needs, reducing downtime by seamlessly plugging into existing systems
04
Weather Resistance with IP65
Offers higher degree of protection with IP65 rating, providing reliable ingress protection against dust and water
05
SD Card Support
Allows for storage, in case of network disruption, and easy transfer of data
06
Door ARGO FACE SERIES
Door Access Controller
Emphasizes speed and ongoing verification
Finger and RFID Card Based Biometric Door Controller
- Multi-Credential Support – Fingerprint, BLE, RFID Card, PIN
- Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
- Finger Template Storage – 1:N Mode: 9,600,1:1 Mode: 1,00,000
- Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
- Suitable for Access Control and Time-Attendance Applications
COSEC VEGA FAX
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | Bluetooth® (BLE),
Fingerprint, RFID Card, PIN, Face (with Compatible Hardware) |
| Ingress Protection | IP65 |
| Card | COSEC VEGA FAE:- EM Proximity Card COSEC VEGA FAM:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag COSEC VEGA FAI:- HID iClass Card Support (Read/Write), HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read), NFC Tag *MIFARE and MIFARE Classic® are trademarks of NXP B.V. |
| CAPACITY | |
| User Profiles | 50,000 |
| Max. Template Storage | 9,600 in 1: N Mode and 100,000 in 1:1 Mode |
| Event Buffer | 5,00,000 |
| Templates per User | Up to 10 (Single Template per Finger Mode) Up to 5 (Dual Template per Finger Mode) |
| COMMUNICATION | |
| Wi-Fi | Yes |
| Bluetooth® | Yes |
| Ethernet | Yes (10/100 Mbps) |
| PoE | Yes (IEEE 802.11 b/g/n) |
| RS-232 | Yes |
| Mobile Broadband | Yes (3G/4G/LTE) |
| Wiegand | Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable |
| USB | 1 USB Port (Data Transfer and 3G/4G/LTE Dongle) |
| INTERFACE | |
| Exit Switch Port | Yes |
| Door Status Sense | Programmable NO, NC, Supervised |
| Door Lock Relay | 30V DC @ 1A, Form C, DPDT Relay |
| Door Lock Power | 12V DC @ 0.5A (Power to external Lock from Device), 30V DC @2 A (Power to lock from External power source) |
| Aux-In | Yes |
| Aux-Out | Yes |
| Reader Interface Types | RS-232 and Wiegand |
| HARDWARE | |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Memory | 256 MB Flash + 512 MB DDR3 RAM |
| Micro SD Card | Yes (Inbuilt 16 GB) |
| Display | 3.5″ TFT Display with Capacitive Touch Panel |
| Display Resolution | 320 x 240 Pixel |
| Buzzer | Yes |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Humidity | 5% to 95% RH Non-Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to Lock from Device) |
| Dimensions (WxHxD) | 91mm x 186mm x 38mm |
| Weight | 0.54Kgs (1.19Lbs) |
| COMPATIBILITY | |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA / COSEC VYOM, Panel Door with COSEC PANEL200P” |
| SENSOR | |
| Sensor Name | Suprema Optical Sensor – SFM6030 |
| Sensor Technology | Optical Technology |
| Encryption | 256-bit AES |
| Waterproof | Yes |
| False Acceptance Ratio (FAR) | 0.001% |
| False Rejection Ratio (FRR) | 0.001% |
| EER | <0.08% |
| Resolution (dpi) | 500 |
| Sensing Area | 16.0mm x 18.0mm |
| Template Size | 384 bytes |
| Finger Duress Detection | Supported (Direct/Panel Door) |
| INSTALLATION | |
| Wall Mount | Yes |
| ACCESSORIES | |
| Power Adapter | 12VDC @ 2A (CE, FCC, UL, BIS) |
| Battery Backup | Yes |
Finger and RFID Card Based Biometric Door Controller
- Multi-Credential Support – BLE, RFID Card, PIN
- Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
- Multi-Connectivity Options – Wi-Fi, PoE, Ethernet, BLE, USB, 3G/4G/LTE
- Suitable for Access Control and Time-Attendance Applications

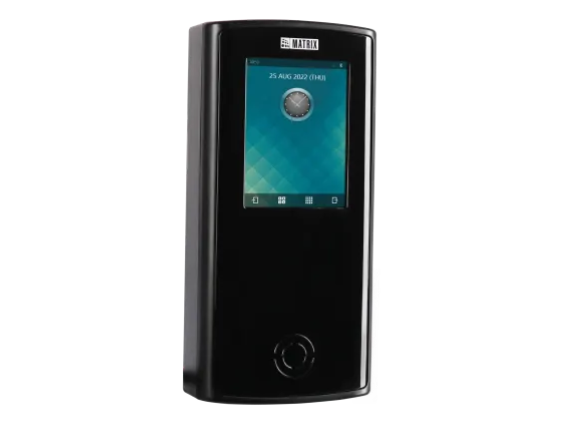

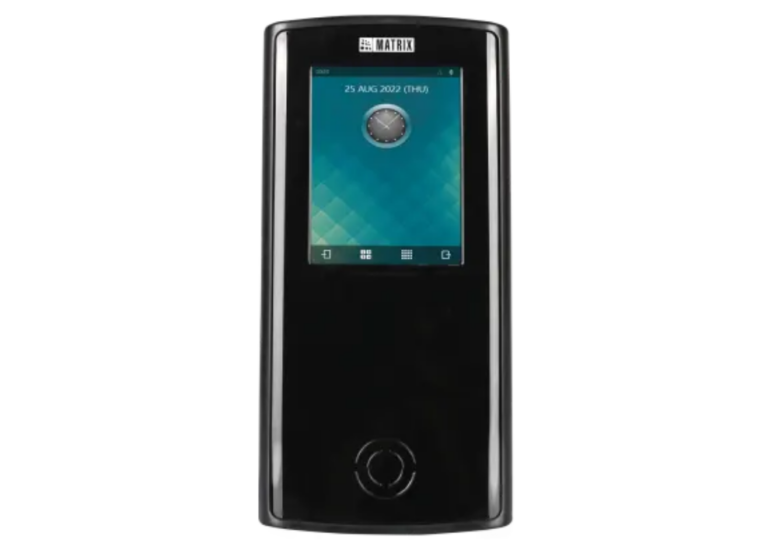

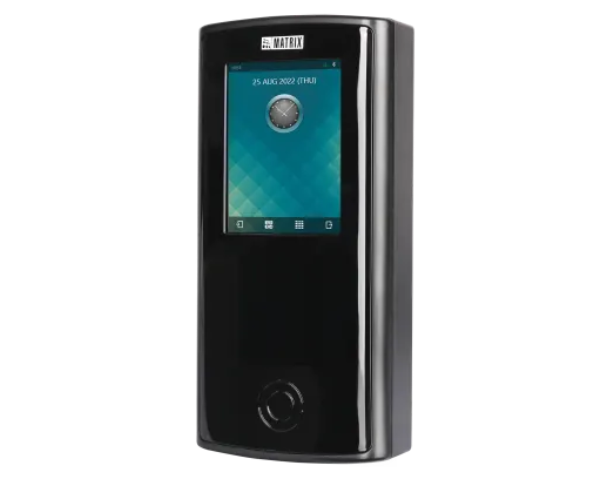

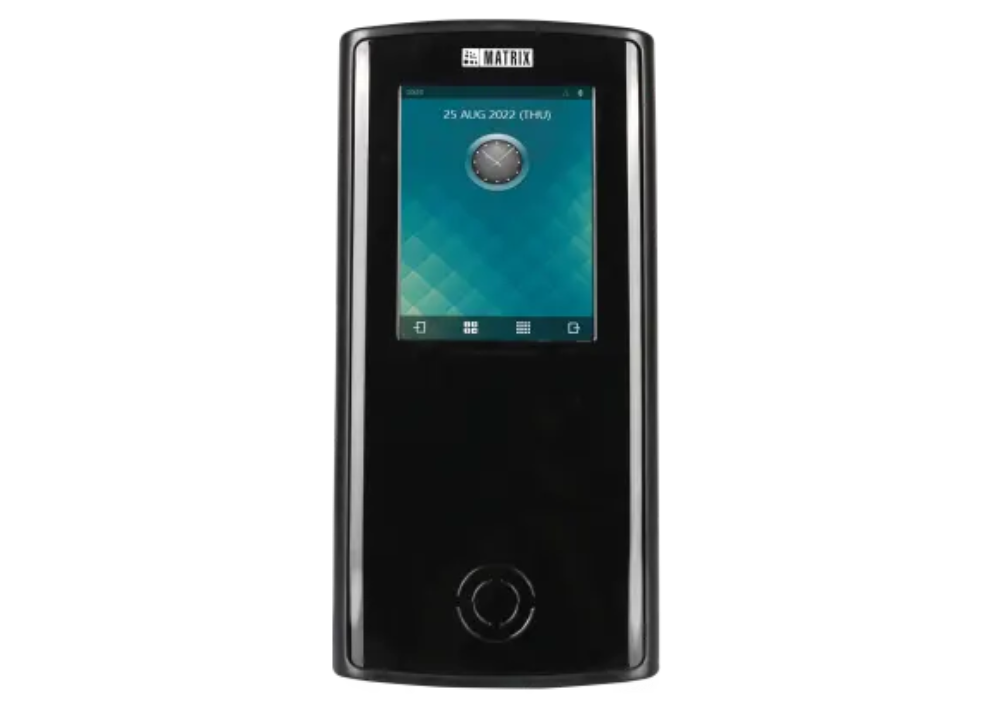

COSEC VEGA CAX
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | Bluetooth® (BLE),
Fingerprint, RFID Card, PIN, Face (with Compatible Hardware) |
| Ingress Protection | IP65 |
| Card | COSEC VEGA FAE:- EM Proximity Card COSEC VEGA FAM:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag COSEC VEGA FAI:- HID iClass Card Support (Read/Write), HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read), NFC Tag *MIFARE and MIFARE Classic® are trademarks of NXP B.V. |
| CAPACITY | |
| Max. Users | 50,000 |
| Event Buffer | 5,00,000 |
| COMMUNICATION | |
| Wi-Fi | Yes |
| Bluetooth® | Yes |
| Ethernet | Yes (10/100 Mbps) |
| PoE | Yes (IEEE 802.11 b/g/n) |
| RS-232 | Yes |
| Mobile Broadband | Yes (3G/4G/LTE) |
| Wiegand | Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable |
| USB | 1 USB Port (Data Transfer and 3G/4G/LTE Dongle) |
| INTERFACE | |
| Exit Switch Port | Yes |
| Door Status Sense | Programmable NO, NC, Supervised |
| Door Lock Relay | 30V DC @ 1A, Form C, DPDT Relay |
| Door Lock Power | 12V DC @ 0.5A (Power to external Lock from Device), 30V DC @2 A (Power to lock from External power source) |
| Aux-In | Yes |
| Aux-Out | Yes |
| Reader Interface Types | RS-232 and Wiegand |
| HARDWARE | |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Memory | 256 MB Flash + 512 MB DDR3 RAM |
| Micro SD Card | Yes (Inbuilt 16 GB) |
| Display | 3.5″ TFT Display with Capacitive Touch Panel |
| Display Resolution | 320 x 240 Pixel |
| Buzzer | Yes |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Humidity | 5% to 95% RH Non-Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to Lock from Device) |
| Dimensions (WxHxD) | 91mm x 186mm x 38mm |
| Weight | 0.54Kgs (1.19Lbs) |
| COMPATIBILITY | |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA / COSEC VYOM, Panel Door with COSEC PANEL200P” |
| INSTALLATION | |
| Wall Mount | Yes |
| ACCESSORIES | |
| Power Adapter | 12VDC @ 2A (CE, FCC, UL, BIS) |
| Battery Backup | Yes |
Finger and RFID Card Based Touch Screen Time-Attendance Terminal
- Multi-Credential Support – Fingerprint, EM Proximity Card, and PIN
- Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
- Finger Template Storage – 1:N Mode: 9,600,1:1 Mode: 1,00,000
- Multi-Connectivity Options – Ethernet, USB, 3G/4G/LTE
- Suitable for Time-Attendance Applications
COSEC VEGA FOT
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | Fingerprint, RFID Card, PIN, Face (with Compatible Hardware) |
| Ingress Protection | IP65 |
| Card | EM Proximity Card |
| CAPACITY | |
| Max. Users | 50,000 |
| Max. Template Storage | 9,600 in 1: N Mode and 100,000 in 1:1 Mode |
| Event Buffer | 5,00,000 |
| Templates per User | Up to 10 (Single Template per Finger Mode), Up to 5 (Dual Template per Finger Mode) |
| COMMUNICATION | |
| Ethernet | Yes (10/100 Mbps) |
| Mobile Broadband | Yes (3G/4G/LTE) |
| USB | 1 USB Port (Data Transfer and 3G/4G/LTE Dongle) |
| HARDWARE | |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Memory | 256 MB Flash + 512 MB DDR3 RAM |
| Micro SD Card | No Inbuilt SD Card (SD Card Supported) |
| Display | 3.5″ TFT Display with Capacitive Touch Panel |
| Display Resolution | 320 x 240 Pixel |
| Buzzer | Yes |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Humidity | 5% to 95% RH Non-Condensing |
| Power | 12V DC @ 2A |
| Dimensions (WxHxD) | 91mm x 186mm x 38mm |
| Weight | 0.54Kgs (1.19Lbs) |
| COMPATIBILITY | |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA / COSEC VYOM |
| SENSOR | |
| Sensor Name | Suprema Optical Sensor – SFM6030 |
| Sensor Technology | Optical Technology |
| Encryption | 256-bit AES |
| False Acceptance Ratio (FAR) | 0.001% |
| False Rejection Ratio (FRR) | 0.001% |
| Wall Mount | Yes |
| Resolution (dpi) | 500 |
| Sensing Area | 16.0mm x 18.0mm |
| Template Size | 384 bytes |
| Image Size (Pixel) | 272mm x 320mm |
| INSTALLATION | |
| Wall Mount | Yes |
| ACCESSORIES | |
| Power Adapter | 12VDC @ 2A (CE, FCC, UL, BIS) |
| Battery Backup | Yes |
Aadhaar Enabled Time-Attendance Terminal
- Multi Credential Support – Fingerprint, MiFare Classic Card, PIN
- Multi Connectivity Options – Ethernet, PoE, 3G/4G/LTE, and USB
- Fast Identification Speed <1.5s
- AEBAS Approved Linux Device
- Suitable for Time-Attendance Application for Indian Government
COSEC VEGA FAXQ
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | Finger, Mifare Card, AADHAAR Number (PIN) |
| Card Support | Mifare Smart Card (Read/Write Supported) |
| Sensor | Suprema Optical Sensor (STQC Certified) |
| Keypad | Touch Screen Based |
| DISPLAY | |
| Display | 3.5″ TFT Display with Capacitive Touch Panel |
| Display Size | 320 x 240 Pixels |
| Size of Wallpaper | 512 kb |
| COMMUNICATION | |
| Ethernet | Yes (10/100 Mbps) |
| Mobile Broadband | Yes (3G Support) Through USB dongle |
| Wi-Fi | Yes (802.11 b/g/n) |
| INTERFACES | |
| USB | Yes (For 3G Connectivity and Data Transfer) |
| AUDIO-VISUAL | |
| User Photo Display | Yes |
| Buzzer | Yes |
| CONFIGURATION | |
| Platform (Operating System) | Embedded Linux |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Flash Memory | 256 MB Flash |
| RAM Memory | 512 MB DDR3 RAM |
| Micro SD Card | Yes (16GB) |
| Battery Backup | Yes |
| ELECTRICAL | |
| Input Power | 12 VDC @ 2A |
| PHYSICAL | |
| Dimensions (W x H x D) (mm^3) | 91 x 186 x 38 |
| Weight (kg) | 0.54 |
| Tamper Detection | Yes |
| ENVIRONMENTAL | |
| Humidity | 5% to 85% RH Non-Condensing |
| Operating Temperature | 0°C to + 50°C (32°F to 122°F) |
