COSEC PATH Series
Compact Biometric Door Controller Designed for Securing Premises
Multiple User Credentials
- Biometric: Finger
- RFID Cards
- Mobile through BLE
- Dual Verification for High-Security Applications
Multiple Connectivity Options
- Built-in Bluetooth, Wi-Fi, PoE, Ethernet
- Use Existing IT Infrastructures to Meet Future Requirements
- Low IT Infrastructure Cost and Future Proof
Higher User and Template Capacity
- Stores up to 50,000 User Profiles
- Fingerprint Template Capacity up to 25,000 in 1:N Mode
- Fingerprint Template Capacity up to 1,00,000 in 1:1 Mode
- Event Log Capacity of 5,00,000
Features
Secured Communication
Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof
01
Tamper Detection
Provides better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for devices
02
Weather Resistance with IP65
Offers weather resistance with an IP65 rating, providing reliable ingress protection against dust and water, making it ideal for outdoor applications
03
04
Plug and Play
Offers plug and play installation with built-in web software, ensuring fewer touches, simple management, and significantly reduced installation time
05
Auto Push Event Data
Eliminates the need to download event data individually, saving valuable time for admin and ensuring an accurate employee attendance process at all times
06
COSEC PATH SERIES
Door Access Controller
Fingerprint-Based Access Control and Time-Attendance Door Controller
Fingerprint-Based Access Control and Time-Attendance Door Controller
- Multi-Credential Support – BLE, Fingerprint, and RFID Card
- Massive Storage Capacity – 5,00,000 Event Logs, 50,000 Users
- Finger Template Storage – 1:N Mode: 25,000,1:1 Mode: 1,00,000
- Multi-Connectivity Options – WiFi, Ethernet, Bluetooth®, RS-232, RS-485, Wiegand

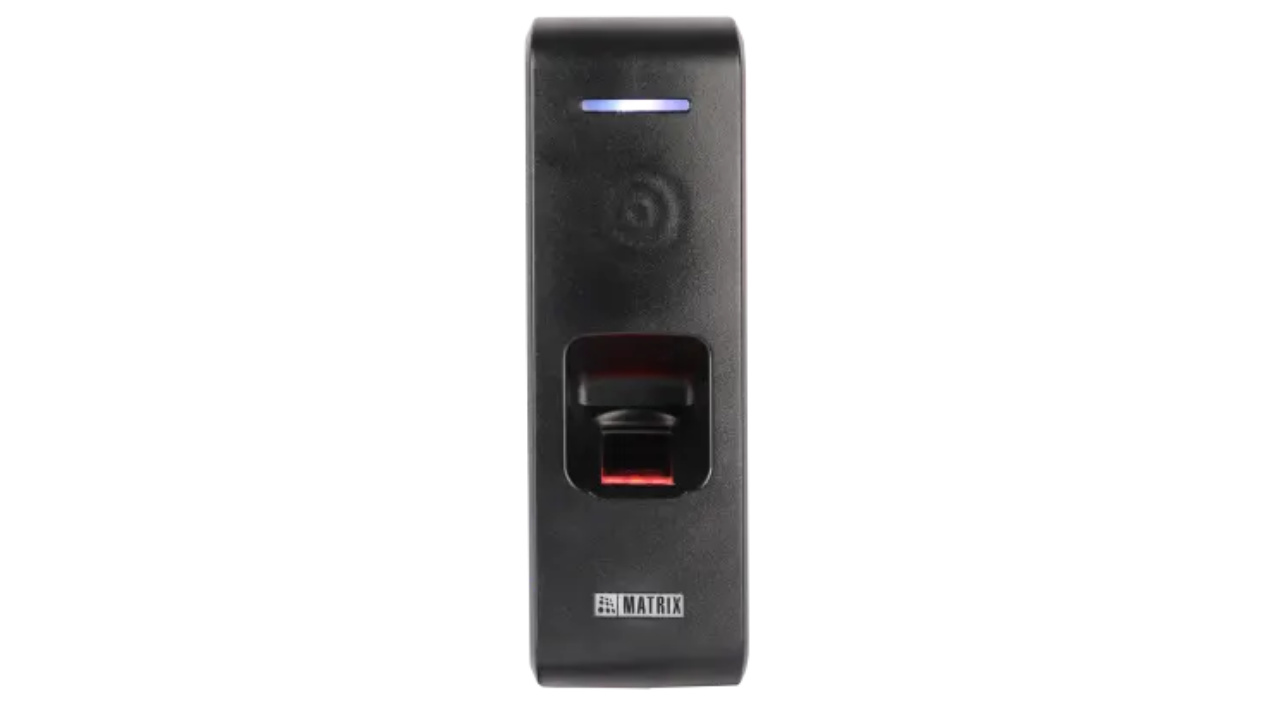

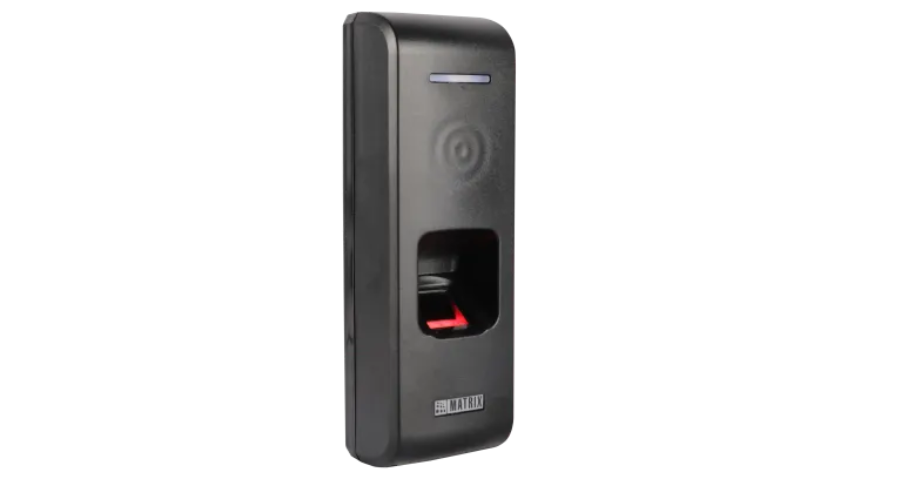

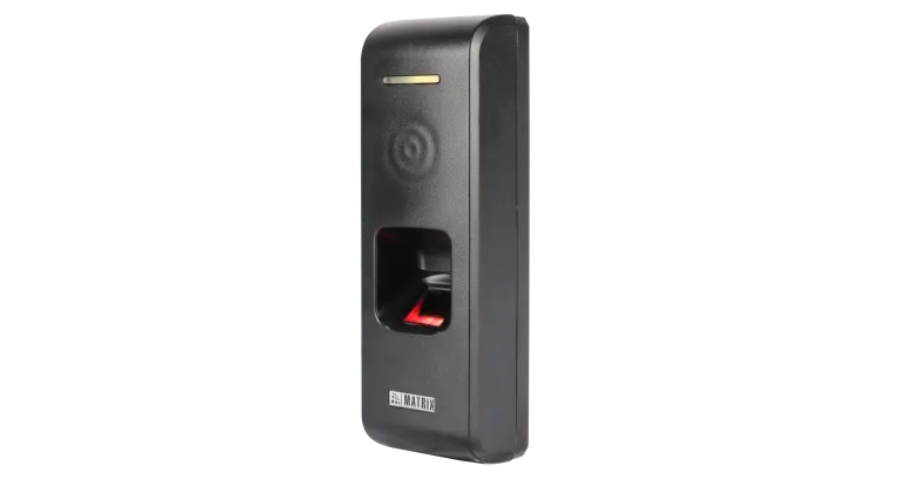

COSEC PATH DCFX
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | Bluetooth® (BLE), Fingerprint, and RFID Card |
| Ingress Protection | IP65 |
| Card | COSEC PATH DCFE:- EM Proximity Card COSEC PATH DCFM:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag COSEC PATH DCFI:- HID iClass Card Support (Read/Write), HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read), NFC Tag *MIFARE and MIFARE Classic® are trademarks of NXP B.V. |
| CAPACITY | |
| User Profiles | 50,000 |
| Max. Template Storage | 25,000 in 1: N Mode and 100,000 in 1:1 Mode |
| Event Buffer | 500,000 |
| Templates per User | Up to 10 (Single Template per Finger Mode) Up to 5 (Dual Template per Finger Mode) |
| COMMUNICATION | |
| Wi-Fi | Yes |
| Bluetooth® | Yes |
| Ethernet | Yes (10/100 Mbps) |
| PoE | Yes (IEEE 802.11 b/g/n) |
| RS-232 | Yes |
| RS-485 | Yes |
| Wiegand | Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable |
| INTERFACE | |
| Exit Switch Port | Yes |
| Door Status Sense | Yes(2State) |
| Door Lock Relay | Yes |
| Door Lock Power | 12V DC @ 0.5A (Power to external Lock from Device), 30V DC @2 A (Power to lock from External power source) |
| Aux-In | No |
| Aux-Out | No |
| Reader Interface Types | RS-232 and Wiegand |
| HARDWARE | |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Memory | 512 MB Flash + 512 MB DDR3 RAM |
| LED | Yes |
| Buzzer | Yes |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Humidity | 5% to 95% RH Non-Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to Lock from Device) |
| Dimensions (WxHxD) | 50mm x 159mm x 42mm |
| Weight | 0.375Kgs (0.82Lbs) |
| COMPATIBILITY | |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA / COSEC VYOM, Panel Door with COSEC PANEL200P |
| SENSOR | |
| Sensor Name | Suprema Optical Sensor – SFM6030 |
| Sensor Technology | Optical Technology |
| Encryption | 256-bit AES |
| Waterproof | Yes |
| False Acceptance Ratio (FAR) | 0.001% |
| False Rejection Ratio (FRR) | 0.010% |
| Resolution (dpi) | 500 |
| Sensing Area | 16.0mm x 18.0mm |
| Template Size | 384 bytes |
| Image Size | 272mm x 320mm |
| INSTALLATION | |
| Wall Mount | Yes |
| ACCESSORIES | |
| Power Adapter | 12VDC @ 2A (CE, FCC, UL, BIS) |
| Battery Backup | Yes (External- 6hrs of Battery Backup on COSEC PATH BBU & COSEC PATH PSBB) |
Card-Based Access Control and Time-Attendance Door Controller
- Multi-Credential Support – BLE and RFID Card
- Massive Storage Capacity – 5,00,000 Event Logs, 50,000 Users
- Multi-Connectivity Options – WiFi, Ethernet, Bluetooth®, RS-232, RS-485, Wiegand
- Compact Design with IP65 Rating

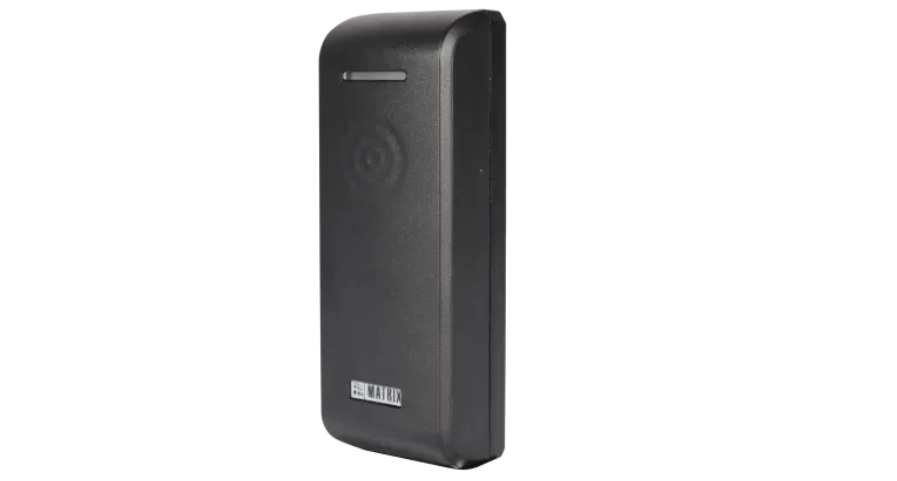

COSEC PATH DCCX
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | Bluetooth® (BLE) and RFID Card |
| Ingress Protection | IP65 |
| Card | COSEC PATH DCCE:- EM Proximity Card COSEC PATH DCCM:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag COSEC PATH DCCI:- HID iClass Card Support (Read/Write), HID Prox, EM Prox, Desfire EV1 & EV2 (CSN Read) and Mifare Classic (CSN Read), NFC Tag *MIFARE and MIFARE Classic® are trademarks of NXP B.V. |
| CAPACITY | |
| User Profiles | 50,000 |
| Event Buffer | 500,000 |
| COMMUNICATION | |
| Wi-Fi | Yes |
| Bluetooth® | Yes |
| Ethernet | Yes (10/100 Mbps) |
| PoE | Yes (IEEE 802.11 b/g/n) |
| RS-232 | Yes |
| RS-485 | Yes |
| Wiegand | Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable |
| INTERFACE | |
| Exit Switch Port | Yes |
| Door Status Sense | Yes(2State) |
| Door Lock Relay | Yes |
| Door Lock Power | 12V DC @ 0.5A (Power to external Lock from Device), 30V DC @2 A (Power to lock from External power source) |
| Aux-In | No |
| Aux-Out | No |
| Reader Interface Types | RS-232 and Wiegand |
| HARDWARE | |
| CPU | 800 MHz ARM Cortex A8 based Processor |
| Memory | 512 MB Flash + 512 MB DDR3 RAM |
| LED | Yes |
| Buzzer | Yes |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Humidity | 5% to 95% RH Non-Condensing |
| Tamper Detection | Yes |
| Power | 12V DC @ 2A |
| Power to Door Lock | 12V DC @ 0.5A (Power to Lock from Device) |
| Dimensions (WxHxD) | 50mm x 136mm x 33mm |
| Weight | 0.154Kgs (0.33Lbs) |
| COMPATIBILITY | |
| System Integration | API for Software Integration |
| Operational Modes | Direct Door with COSEC CENTRA / COSEC VYOM, Panel Door with COSEC PANEL200P |
| SENSOR | |
| Sensor Name | Suprema Optical Sensor – SFM6030 |
| Sensor Technology | Optical Technology |
| Encryption | 256-bit AES |
| Waterproof | Yes |
| False Acceptance Ratio (FAR) | 0.001% |
| False Rejection Ratio (FRR) | 0.010% |
| Resolution (dpi) | 500 |
| Sensing Area | 16.0mm x 18.0mm |
| Template Size | 384 bytes |
| Image Size | 272mm x 320mm |
| INSTALLATION | |
| Wall Mount | Yes |
| ACCESSORIES | |
| Power Adapter | 12VDC @ 2A (CE, FCC, UL, BIS) |
| Battery Backup | Yes (External- 6hrs of Battery Backup on COSEC PATH BBU & COSEC PATH PSBB) |
