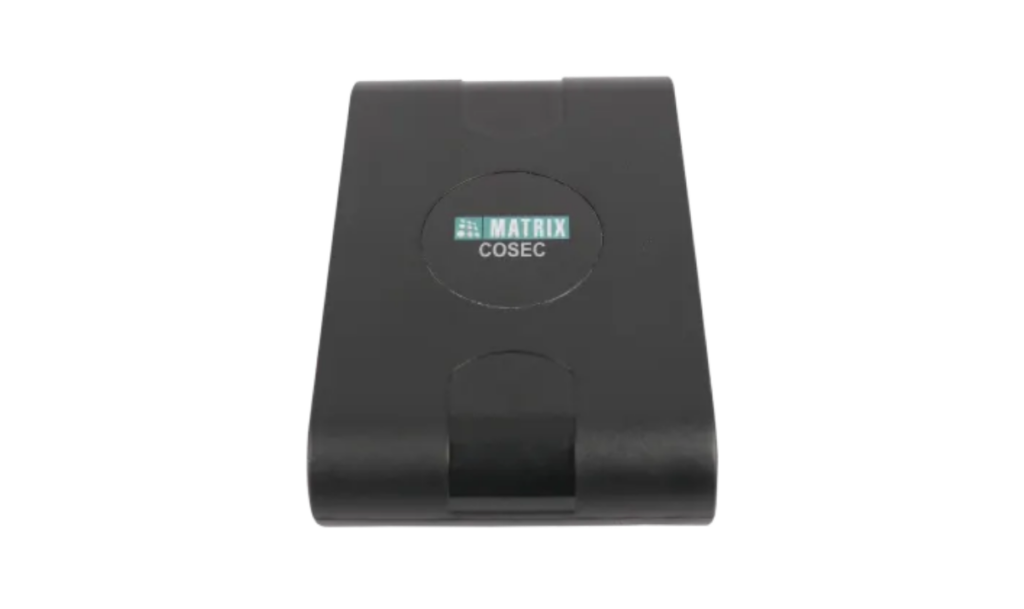

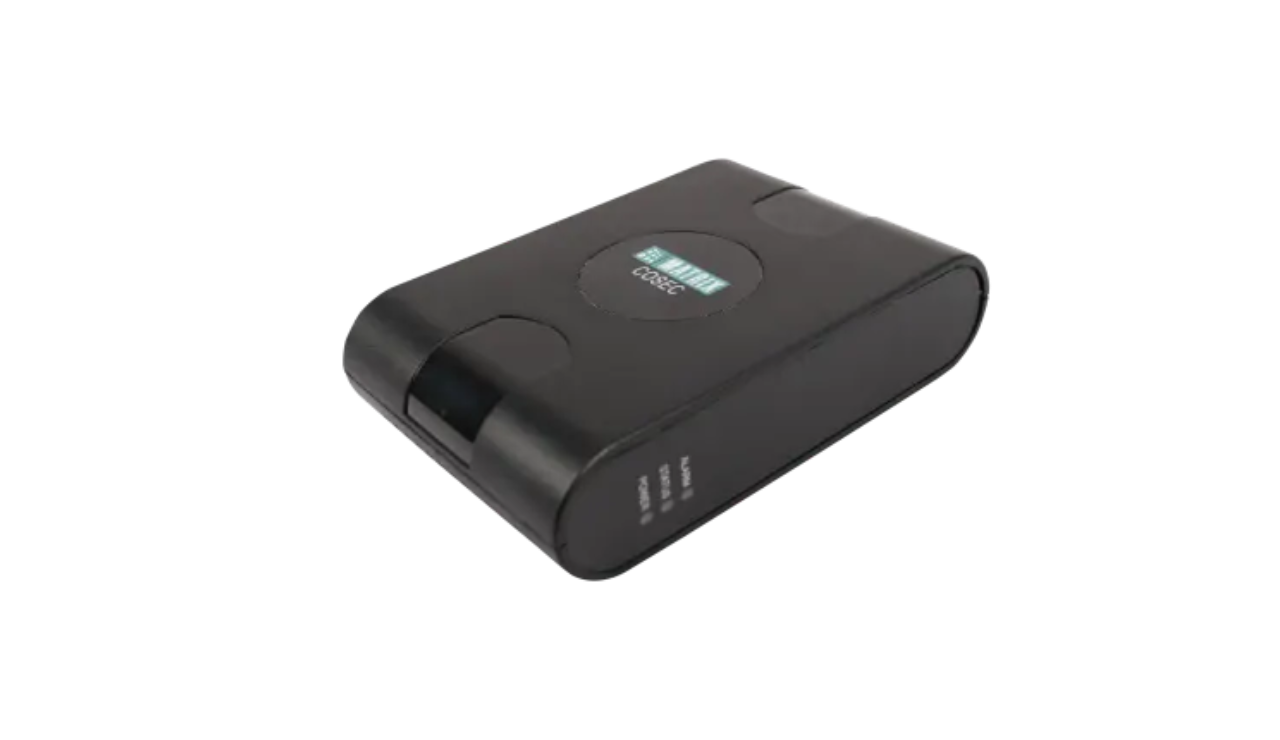

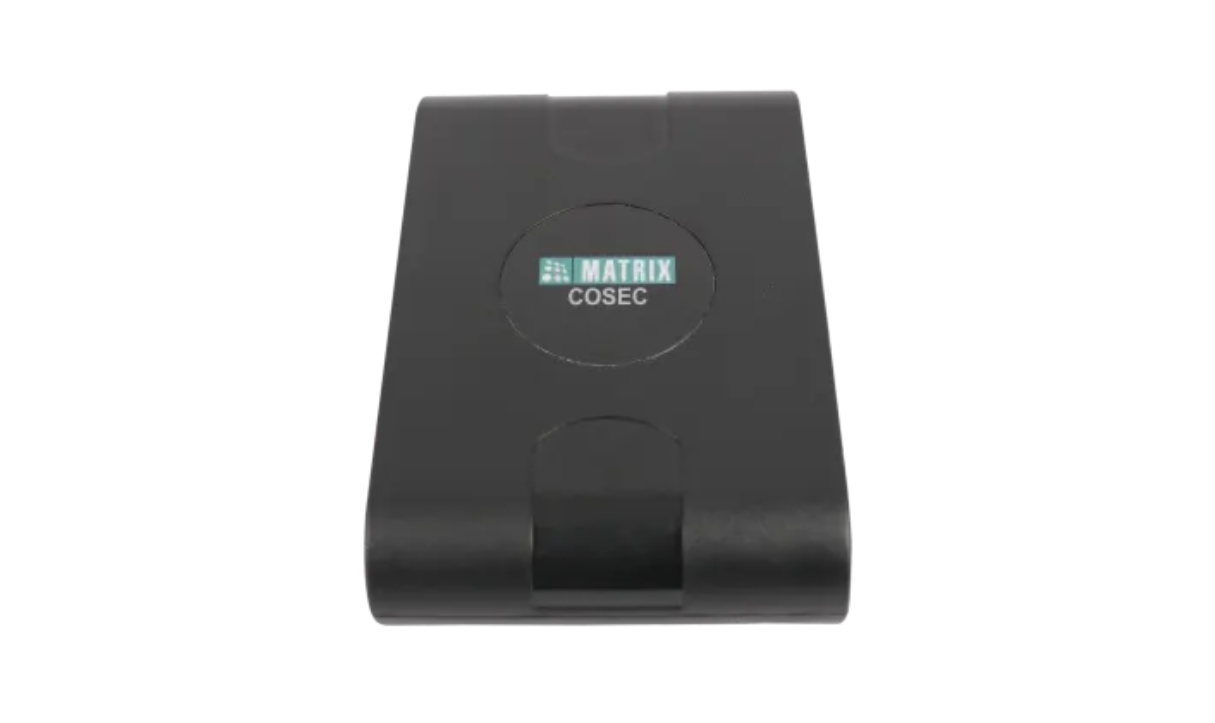

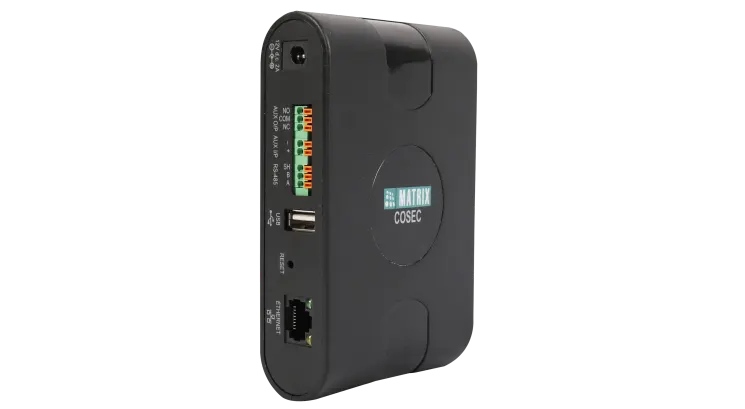

COSEC PANEL200P
TCompact Access Controller Hub Pioneered for Advanced Security
25+ Advanced Access Features
- Man Trap, Dead Man Zone, Anti-Pass Back
- 2-Person Rule, First-In User, Guard Tour
- Elevator Access Control, Access Route, and Many More
- Gain Full-fledged Access Control for Standalone Operations as well as Multi-Locations
Multiple Communication Options
- Built-in Bluetooth, Wi-Fi, USB, Ethernet, RS-485
- Use Existing IT Infrastructures to Meet Future Needs
Better Control and Higher Storage Capacity
- Controls up to 255 Doors
- Stores up to 25,000 User Profiles
- Event Log Capacity of 5,00,000
Features
Secured Communication
Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof
01
IP to Door
Eliminate the need for long cables between the control panel, reader, and lock, reducing costs effectively with the innovative IP to Door technology
02
Plug and Play
Simplify installation and management with built-in web software and plug-n-play capability with no need of additional servers
03
Auxiliary Devices Interface
Allow seamless connection of fire alarm as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware
04
05
Device Push/ Pull API
Enable seamless communication with third party softwares, allowing customers for better control
06
COSEC PANEL200P
Access Control Hub
Compact Access Controller Hub Pioneered for Advanced Security
Access Controller Hub
-
Dual Architecture Mode – Standalone* and Network**
*Supports Access Control, **Supports Access Control and Time Attendance - Massive Storage Capacity – 25,000 Users, 5,00,000 Event Logs
- Multi Connectivity Options – Wi-Fi, Ethernet, BLE, USB, 3G/4G/LTE, RS-485
- In-Built Status Alert with Tri-Color LED
COSEC PANEL200P
Technical Specifications
| CAPACITY | |
|---|---|
| Maximum Door Controllers | 255 |
| Door controller on RS-485 | 32 |
| Max User Capacity | 25,000 |
| Event Buffer | 5,00,000 |
| COMMUNICATION | |
| Wi-Fi | Inbuilt Wi-Fi Module (IEEE 802.11 b/g/n) |
| Inbuilt Bluetooth | YES |
| Ethernet | YES (10/100 Mbps) |
| RS-485 | YES |
| USB | One USB Port (For data transfer and 2G-3G-4G /WiFi Dongle) |
| SD Card | YES (8 GB) |
| INTERFACE | |
| Aux-In | YES (4 states – short, open, activated & non-activated) |
| Aux-Out | Form C and SPDT Relay |
| HARDWARE | |
| CPU | Cortex A8 800 MHz |
| Flash memory | 256 MB |
| RAM memory | 256 MB (DDR3 SDRAM @ 800MHz) |
| Operating system | Linux based OS |

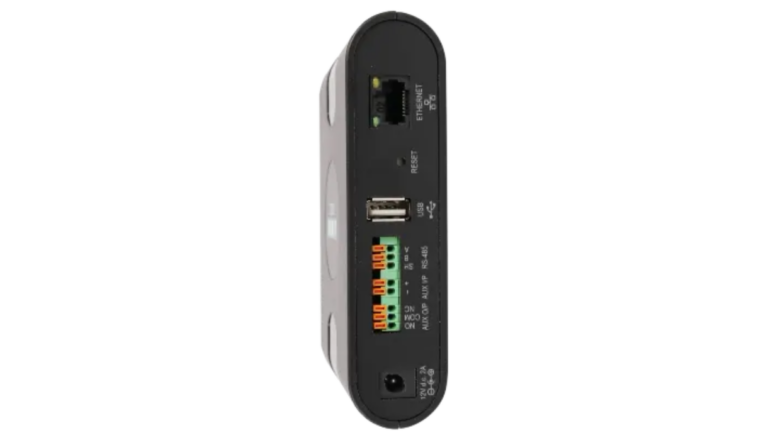

| Communication Port | Ethernet & RS-485 |
| Tamper Detection | YES |
| RTC | YES |
| AUDIO VISUAL | |
| LED | Tricolor LED (Power, Status & Alarm) |
| Buzzer | YES (12V) |
| ENVIRONMENTAL | |
| Operating Temperature | -10°C to +55°C (14°F to 131°F) |
| Humidity | 5% to 95 % RH Non-Condensing |
| POWER | |
| Input Power | External Power Adapter 12 VDC @ 2 A |
| MECHANICAL | |
| Dimensions (L x H x D) | 125.25mm X 81.5mm X 30.5mm (4.93” x 3.20” x 1.20”) |
| Weight | 140gm (0.308 lbs) |
| Enclosure material | ABS V0 grade |
| CERTIFICATES | |
| Certificates | FCC, CE, and RoHS |
| COMPATIBILITY | |
| System Integration | API for Software integration |
| Architecture | 1) Network Architecture – With COSEC CENTRA/VYOM, 2) Standalone Architecture |
| OTHER Details | |
| Mounting | Wall Mounting or Tabletop |
| Packaging Content | 1) Main unit 2) Adaptor (12VDC, 2A), 3) SD Card (8 GB) |
