COSEC CENTRA
GDPR Compliant On-Premise Access Control and Time-Attendance Solution
Web-based Application Software
- Live Status of all Devices
- Real-time Management of Devices and Applications
Real-time Monitoring of Devices
- Easy Monitoring and Centralized Management of Devices
- Manage Access Control Features from a Single Window
Modular and Scalable Architecture
Features
Secured Communication
Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof
01
Easy Backup and Restore
Enable easy preservation and retrieval of user configuration details for seamless management
02
03
04
05
06
Door ARGO FACE SERIES
Door Access Controller
Emphasizes speed and ongoing verification
Two-Door Access Controller
- Finger, Card, PIN and BLE as Credential using External Readers
- Massive Storage Capacity – 50,000 Users, 5,00,000 Event Logs
- Multi Connectivity Options – Wi-Fi, Ethernet, BLE, RS-485
- Support Third Party Access Control Readers over Wiegand Interface

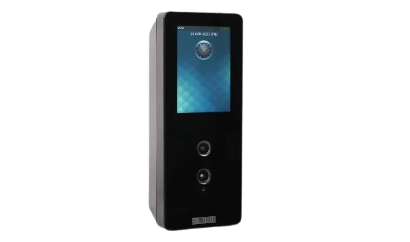

COSEC ARGO FACE
Technical Specifications
| Parameters | Specifications |
|---|---|
| CAPACITY | |
| Face | Yes |
| PIN | Yes |
| Card | COSEC ARGO FACEE:- EM Proximity Card COSEC ARGO FACEM:- MIFARE Classic®/Desfire/NFC Tag COSEC ARGO FACEI:- HID i-class, HID Prox,EM Prox & Mifare/Desfire/NFC Tag *MIFARE and MIFARE Classic® are trademarks of NXP B.V. |
| CAPACITY | |
| BLE User Profiles | 50,000- Mobile |
| Face Templates | 200,000 |
| Max. Templates Per User | 30 |
| Event Log | 5,00,000 |
| FACE RECOGNITION | |
| Algorithm | Deep Learning based Face Recognition |
| Fake Face Detection | Yes |
| Face Identification | 1:200,000 in < 1 sec 1:1 in < 0.5 sec |
| Face Enrolment | Face Recognition Terminal Enrolment Station Upload Images Exception Faces |
| GENERAL SPECIFICATIONS | |
| Dimensions (WxHxD) | 74 mm x 186mm x 50mm |
| Weight | 0.65Kgs (1.433 lbs) |
| Display | 3.5″ IPS LCD (Touch Screen) |
| Display Resolution | 480 x 320 Pixel Yes (Gorilla Glass 3) |
| Display Resolution | 480 x 320 Pixel Yes (Gorilla Glass 3) |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | Quad Core ARM Cortex-A7 @ 1.5 GHz |
| GPU | Built-in 2 TOPS Neural Network Computing Performance |
| RAM | 2 GB DDR4 |
| Flash memory | 16 GB eMMC16 GB eMMC |
| SD Card | No (Built-in 16GB eMMC provided) |
| Tamper Detection | Yes |
| Buzzer | Yes |
| IR LEDs | Yes |
| Ingress Protection | IP65 |
| Vandal Protection | IK06 |
| Certificate | CE, FCC, BIS, UL, RoHS |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5% to 95 % RH Non-Condensing |
| CAMERA | |
| RGB Camera | 2MP Surveillance Grade, IR Blocked |
| Infrared Camera | 2MP Surveillance Grade, IR Band Pass |
| Camera Sensors | SONY IMX 307, EXMOR Technology, STARVIS Series |
| COMMUNICATION | |
| Ethernet | Yes (10/100 Mbps – 1 port) |
| PoE | Yes (IEEE 802.3 af) |
| WiFi | Yes (802.11 b/g/n) |
| 3G/4G/LTE | Yes (Additional USB Modem) |
| BLE | Yes (Version4.2) (8m Range) |
| USB | Yes (USB 2.0) Micro USB-Type B |
| INTERFACE | |
| Exit Switch Interface | Yes |
| External Reader Support | Yes (MATRIX and 3rd Party) |
| External Reader | Interface, RS232, Wiegand, Power, 12VDC @ 0.5A, LED and Buzzer Control, Allowed – GREEN LED, Buzzer |
| Wiegand | Yes (Selectable IN/OUT) IN: 26 Bit format OUT: Configurable |
| Door Lock Relay | Yes (30VDC @ 2A, Dry Contacts NO/NC/COM) |
| Door Lock Power | Internal PoE Power: 12VDC @ 0.250 A, Internal Adapter Power 12VDC @ 0.5 A, External Power 12VDC @ 2A |
| INSTALLATION | |
| Wall Mount | Yes – Plastic Back Cover with Screws |
| Flush Mount | Yes – Metal Bracket with Screws |
| ACCESSORIES | |
| Power Adapter | 12VDC @ 2A (CE, FCC, UL, BIS) |
Two-Door Access Controller
- Multi-Credential Support – Face, PIN, and QR Code*
- Multi-Connectivity Options – PoE, Ethernet, USB, 3G/4G/LTE
- Massive Storage Capacity – 50,000 Users, 2,00,000 Face Templates
- Deep Face Learning Algorithm with Adaptive Understanding

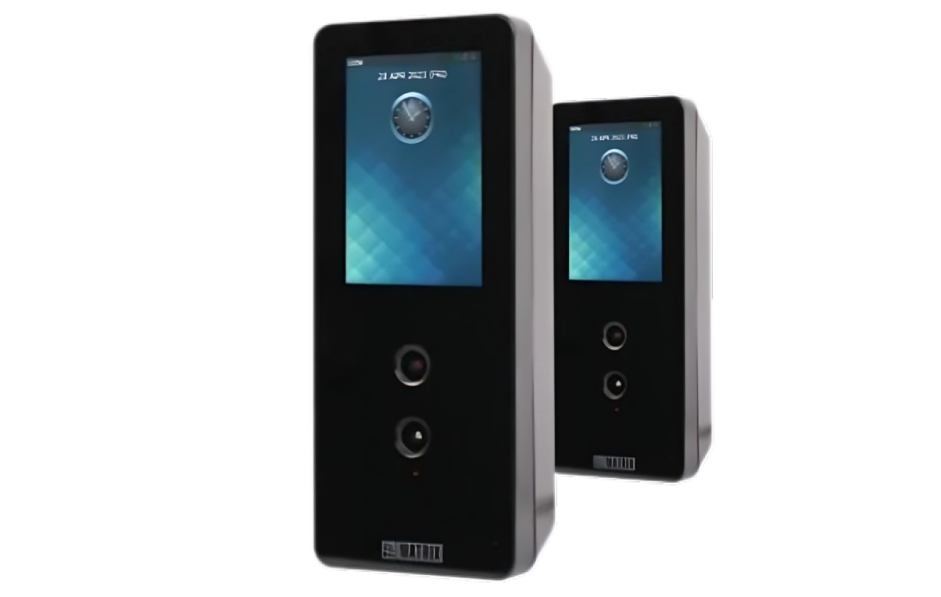

COSEC ARGO FACE200T
Technical Specifications
| Parameters | Specifications |
|---|---|
| CREDENTIAL SUPPORT | |
| Face | Yes |
| PIN | Yes |
| QR Code | Yes*(*Support Available from V20R7) |
| CAPACITY | |
| User Profiles | 50,000 |
| Face Templates | 200,000 |
| Max. Templates Per User | 30 |
| Event Log | 5,00,000 |
| FACE RECOGNITION | |
| Algorithm | Deep Learning based Face Recognition |
| Fake Face Detection | Yes |
| Face Identification | 1:200,000 in < 1 sec, 1:1 in < 0.5 sec |
| Face Enrolment | Face Recognition Terminal, Enrolment Station, Upload Images, Unidentified Face Enrolment, Adaptive Face Enrolment |
| GENERAL SPECIFICATIONS | |
| Dimensions (WxHxD) | 186mm x 74 mm x 50mm (7.3” x 3” x 2 “) |
| Weight | 650gms (1.433 lbs) |
| Display | 3.5″ IPS LCD (Touch Screen) |
| Display Resolution | 480 x 320 Pixel Yes (Gorilla Glass 3) |
| Display Resolution | 480 x 320 Pixel |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | Quad Core ARM Cortex-A7 @ 1.5 GHz |
| GPU | Built-in 2 TOPS Neural Network Computing Performance |
| RAM | 2 GB DDR4 |
| Flash memory | 16 GB eMMC |
| SD Card | No (Built-in 16GB eMMC provided) |
| Tamper Detection | No |
| Buzzer | Yes |
| IR LEDs | Yes |
| Ingress Protection | IP65 |
| Vandal Protection | IK06 |
| Certificate | CE, FCC, BIS, RoHS |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | -20°C to 60°C |
| Humidity | 5% to 95 % RH Non-Condensing |
| CAMERA | |
| RGB Camera | 2MP Surveillance Grade, IR Blocked |
| Infrared Camera | 2MP Surveillance Grade, IR Band Pass |
| Camera Sensors | SONY IMX 307, EXMOR Technology, STARVIS Series |
| COMMUNICATION | |
| Ethernet | Yes (10/100 Mbps – 1 port) |
| PoE | Yes (IEEE 802.3 af) |
| WiFi | No |
| 3G/4G/LTE | Yes (Additional USB Modem) |
| BLE | No |
| USB | Yes (USB 2.0), Micro USB-Type B |
| INTERFACE | |
| Exit Switch Interface | No |
| External Reader Support | No |
| Door Lock Relay | No |
| Door Lock Power | No |
| INSTALLATION | |
| Wall Mount | Yes – Plastic Back Cover with Screws |
| Flush Mount | Yes – Metal Bracket with Screws |
| ACCESSORIES | |
| Power Adapter | No • DC 12V INPUT JACK will be available • Adapter needs to be purchased separately |
