COSEC ATOM Series
Next Generation Readers Engineered for Simplifying Access Control
Multiple User Credentials
- Biometric: Face
- QR Code, PIN, and RFID Cards
- Mobile through BLE
- Dual Verification for High-Security Applications
Convenient Communication Options
- RS-232
- RS-485
- Wiegand
- Fetch Power from Device

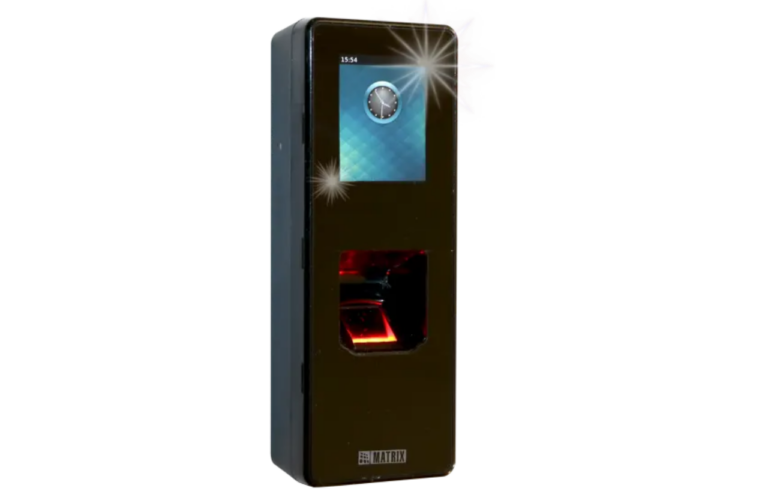

Aesthetic Look and Design
- Full Frontal Gorilla Glass
- Scratchproof, Impact Resistant and Vandal Resistant
- Withstands International Testing Standards
Features
Secured Communication
Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof
01
Tamper Detection
Provides better security with tamper detection, instantly alerting to any vandalism acts, ensuring enhanced protection for access control systems
02
Weather Resistance with IP65
Offers weather resistance with an IP65 rating, providing reliable ingress protection against dust and water, making it ideal for outdoor applications
03
Vandal Resistance with IK06/07
Boasts vandal resistance with an IK rating, ensuring its durability against rough handling and providing protection against malicious acts
04
05
Seamless Access Control
Offers contactless access with dual verification, combining convenience with higher security measures for seamless and reliable access control
06
COSEC ATOM SERIES
Door Access Controller
Finger and RFID Card Based Ultra Fast Biometric Door Controlle

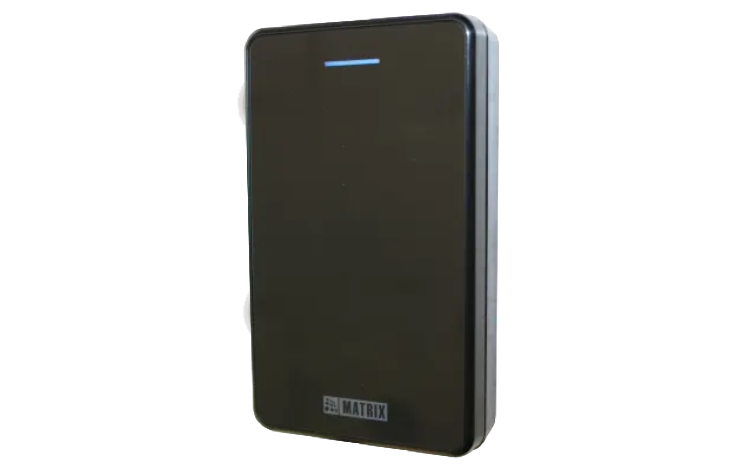

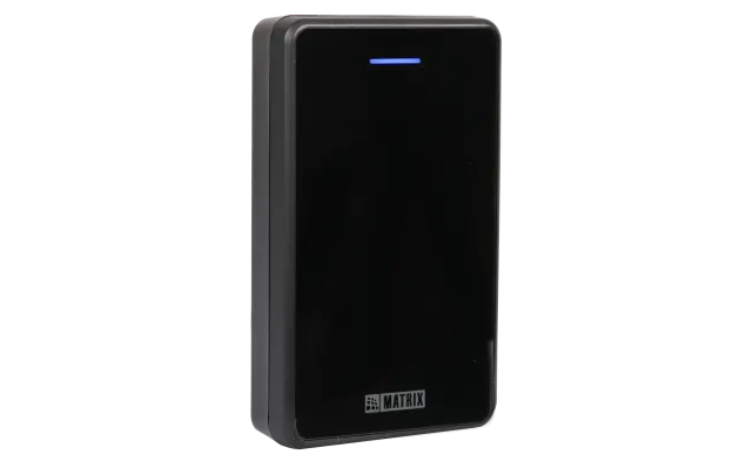

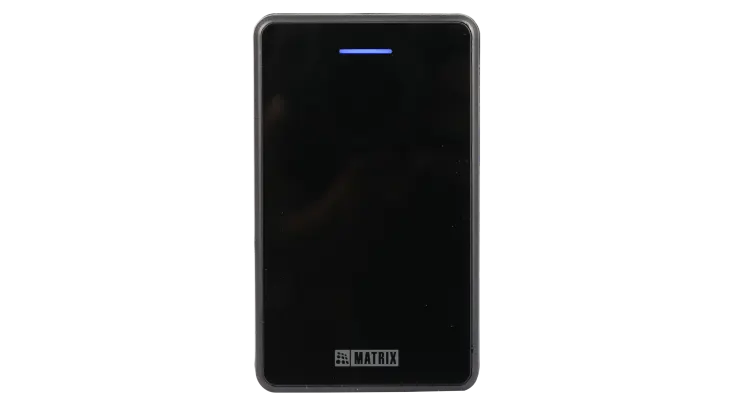

RFID Card and Bluetooth® Based Access Control Reader
- Multi-Credential Support – BLE and RFID Card
- Sleek, Compact Built
- Supports Multi-factor Credential Support
- Supports Third Party Door Controllers via Wiegand Interface
COSEC ATOM RD100
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | BLE and Card |
| RF Option | COSEC ATOM RD100E:- EM Proximity Card COSEC ATOM RD100M:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag COSEC ATOM RD100I:- HID i-Class/ Mifare/ Desfire/ Combo Cards *MIFARE and MIFARE Classic® are trademarks of NXP B.V. |
| CAPACITY | |
| User Profiles | Depends on the Master Device |
| Event Log | Depends on the Master Device |
| COMMUNICATION | |
| Inbuilt Bluetooth® | Yes |
| INTERFACE | |
| RS-232 | Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
| Wiegand | Yes |
| RS-485 | Yes (Compatible with ARC DC200P) |
| HARDWARE | |
| Dimensions | 101mm X 60 mm X 19mm |
| Weight | 0.14kgs (0.30 Lbs) |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | Nordic 32 Bit |
| Tamper Detection | Yes |
| Buzzer | Yes (12V Magnetic buzzer) |
| LEDs | Yes (Tri Color) |
| Ingress Protection (IP) | Yes (IP65) |
| Vandal Proof (IK) | Yes (IK07) |
| Keypad | No |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to +55°C |
| Humidity | 5% to 95 % RH Non-Condensing |
| INSTALLATION | |
| Wall Mount | Yes |

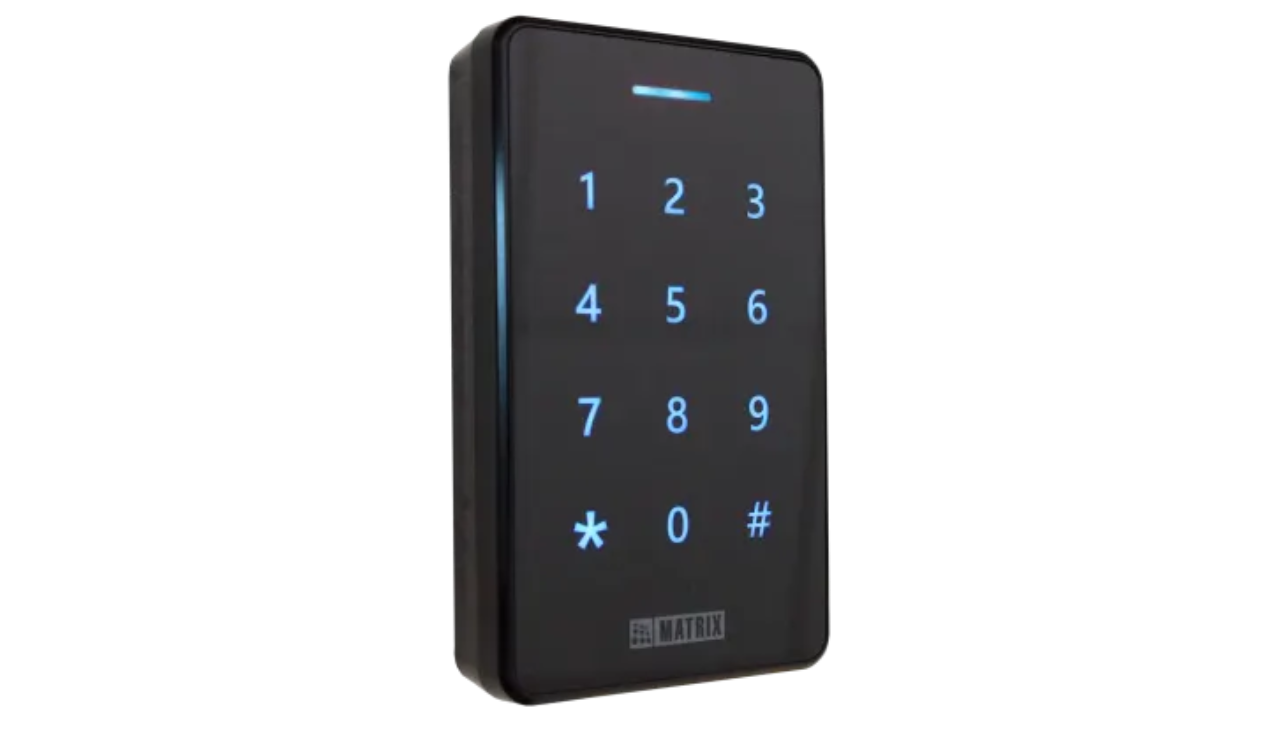

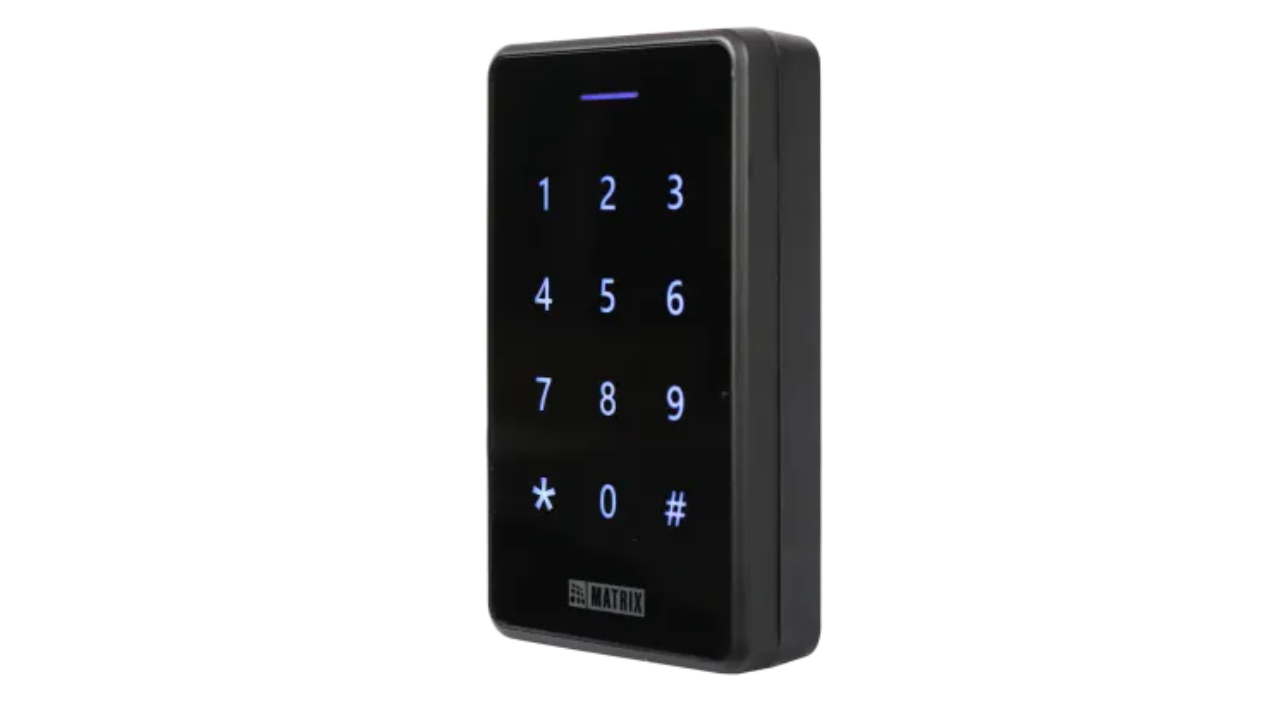

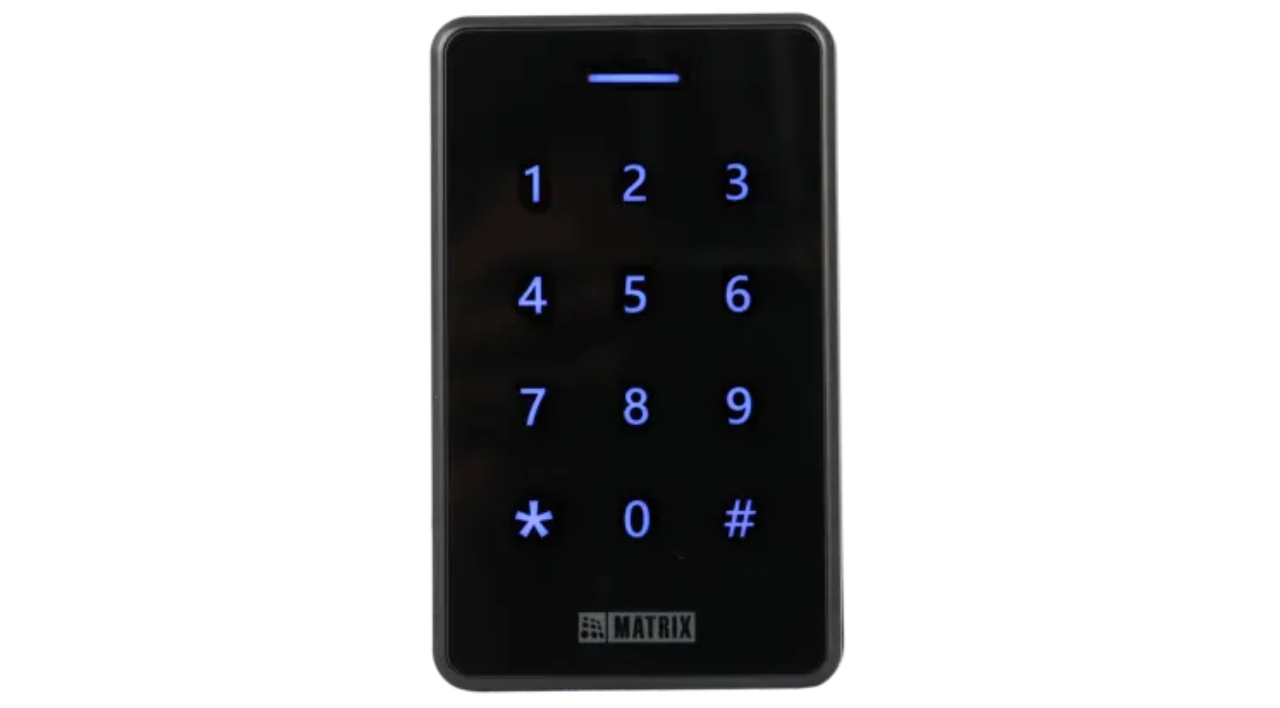

RFID Card and Bluetooth® Based Access Control Reader with Keypad
- Multi-Credential Support – BLE, RFID Card, and PIN
- A Backlit Touchsense Keypad
- Supports Multi-factor Credential Support
- Supports Third Party Door Controllers via Wiegand Interface
COSEC ATOM RD100K
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | PIN, BLE, and Card |
| RF Option | COSEC ATOM RD100KE:- EM Proximity Card COSEC ATOM RD100KM:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag COSEC ATOM RD100KI:- HID i-Class/ Mifare/ Desfire/ Combo Cards *MIFARE and MIFARE Classic® are trademarks of NXP B.V. |
| CAPACITY | |
| User Profiles | Depends on the Master Device |
| Event Log | Depends on the Master Device |
| COMMUNICATION | |
| Inbuilt Bluetooth® | Yes |
| INTERFACE | |
| RS-232 | Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
| Wiegand | Yes |
| RS-485 | Yes (Compatible with ARC DC200P) |
| HARDWARE | |
| Dimensions | 101mm X 60 mm X 19mm |
| Weight | 0.14kgs (0.30 Lbs) |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | Nordic 32 Bit |
| Tamper Detection | Yes |
| Buzzer | Yes (12V Magnetic buzzer) |
| LEDs | Yes (Tri Color) |
| Ingress Protection (IP) | Yes (IP65) |
| Vandal Proof (IK) | Yes (IK07) |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to +55°C |
| Humidity | 5% to 95 % RH Non-Condensing |
| INSTALLATION | |
| Wall Mount | Yes |

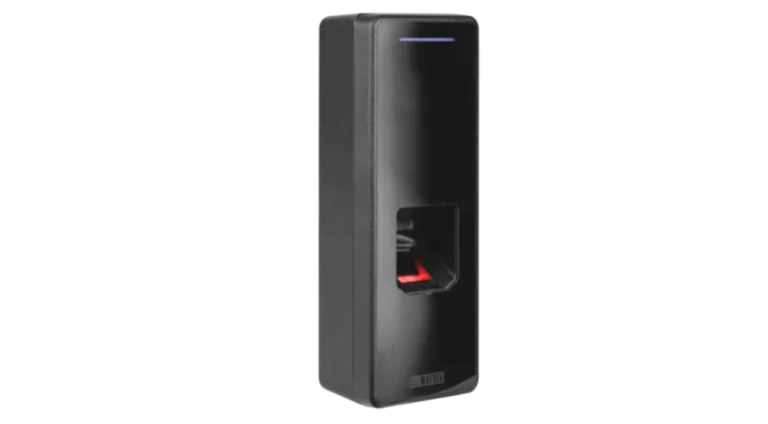

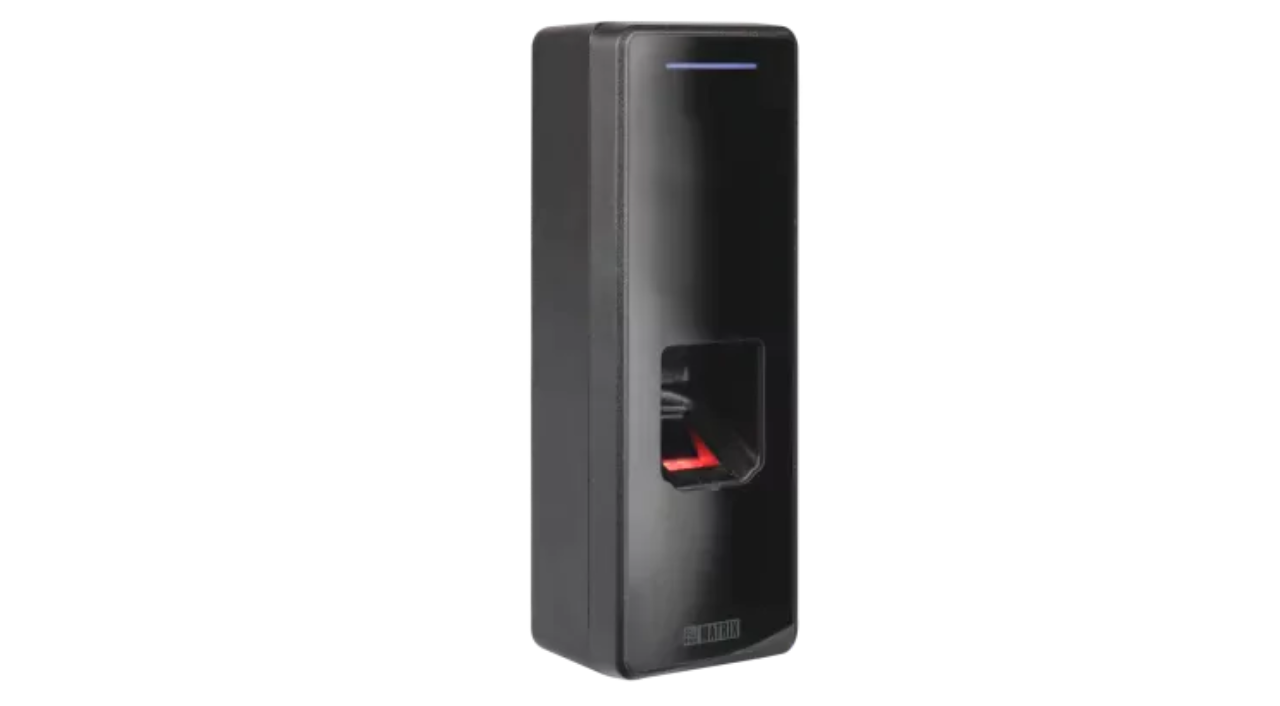

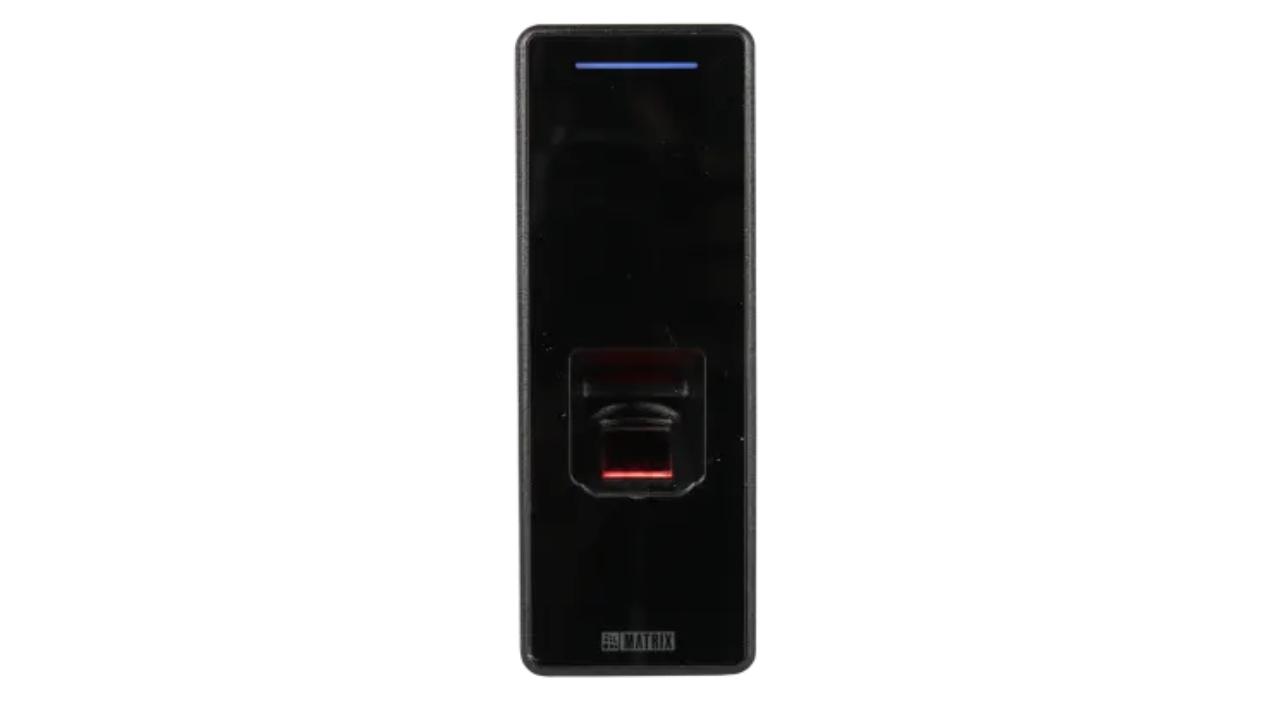

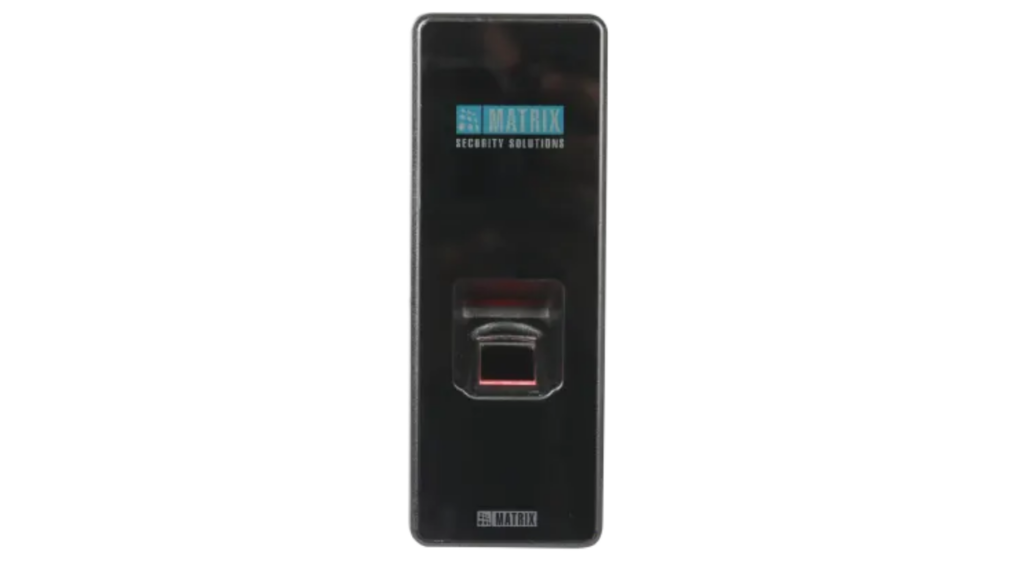

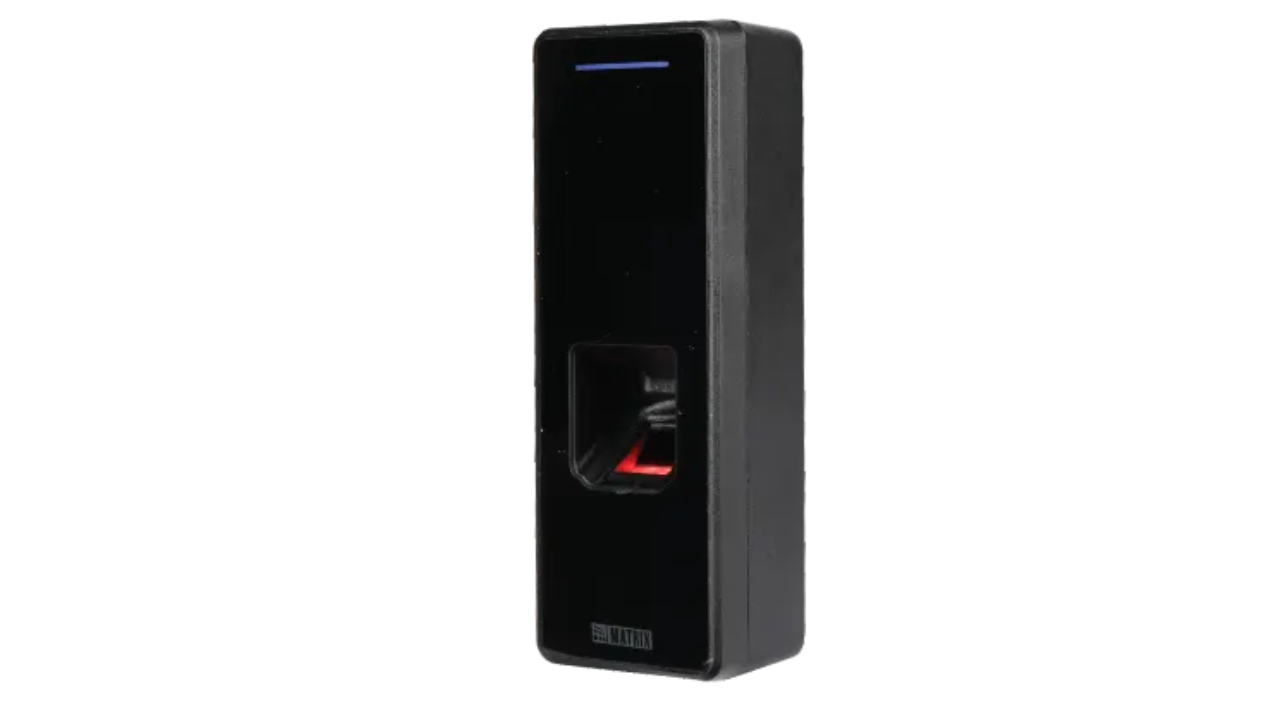

Finger and RFID Card Based Biometric Access Control Reader
- Multi-Credential Support – Fingerprint, BLE, and RFID Card
- Supports Multi-factor Credential Support
- Supports Third Party Application via Wiegand Interface
- Built-in Buzzer Alert System with Tamper Detection
COSEC ATOM RD200
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | Fingerprint, BLE, and Card |
| RF Option | COSEC ATOM RD200E:- EM Proximity Card COSEC ATOM RD200M:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag COSEC ATOM RD200I:- HID i-Class/ Mifare/ Desfire/ Combo Cards *MIFARE and MIFARE Classic® are trademarks of NXP B.V. |
| CAPACITY | |
| User Profiles | Depends on the Master Device |
| Event Log | Depends on the Master Device |
| COMMUNICATION | |
| Inbuilt Bluetooth® | Yes |
| WiFi | Yes (802.11 b/g/n) |
| INTERFACE | |
| RS-232 | Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
| Wiegand | Yes |
| RS-485 | Yes (Compatible with ARC DC200P) |
| HARDWARE | |
| Dimensions | 153mm X 56 mm X 37mm |
| Weight | 0.320 kgs (0.70 lbs) |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | AM3352 |
| RAM | 256 MB |
| Flash Memory | 256 MB |
| Tamper Detection | Yes |
| Buzzer | Yes (12V Magnetic buzzer) |
| LEDs | Yes (Tri Color) |
| Ingress Protection (IP) | Yes (IP65) |
| Vandal Proof (IK) | Yes (IK06) |
| ENVIRONMENTAL | |
| Operating Temperature | -20°C to +55°C |
| Humidity | 5% to 95 % RH Non-Condensing |
| FINGERPRINT SENSOR | |
| Sensor Type | Optical |
| Sensor Name | SFM6030-OC6 |
| Sensor Surface | Scratch Free |
| Resolution | 500 DPI |
| Sensing Area | 16.0mm X 18.0mm |
| INSTALLATION | |
| Wall Mount | Yes |
| Flush Mount | Yes |

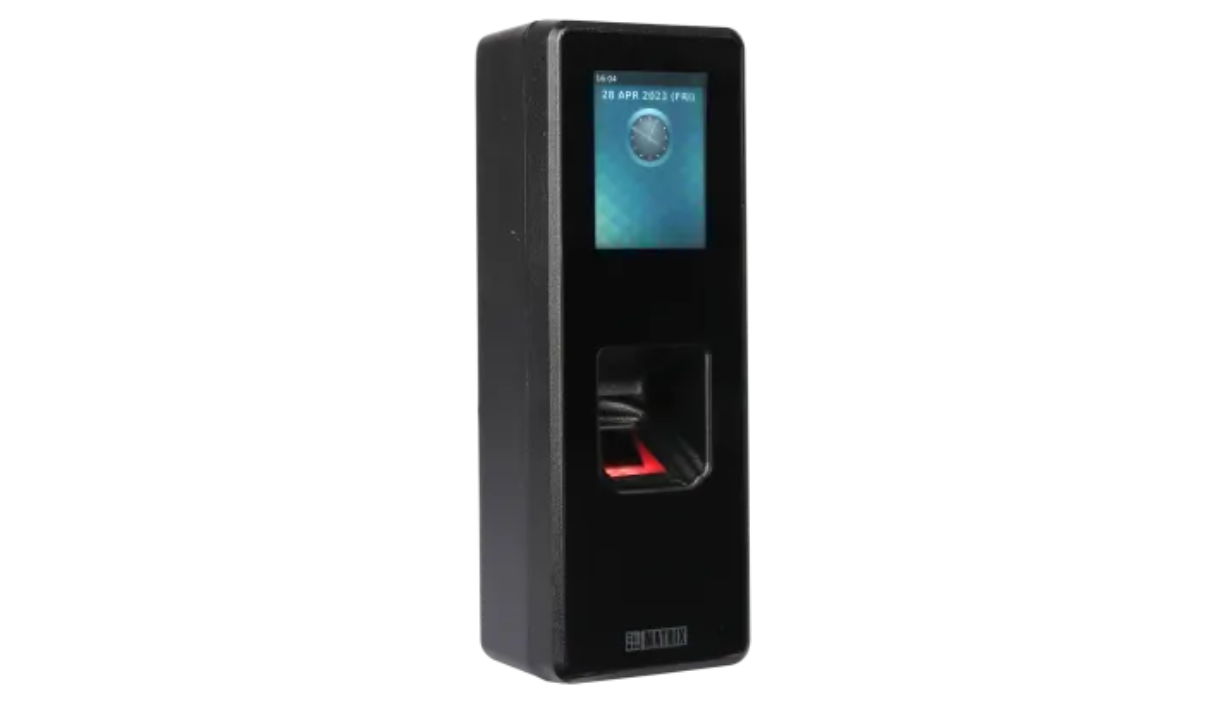

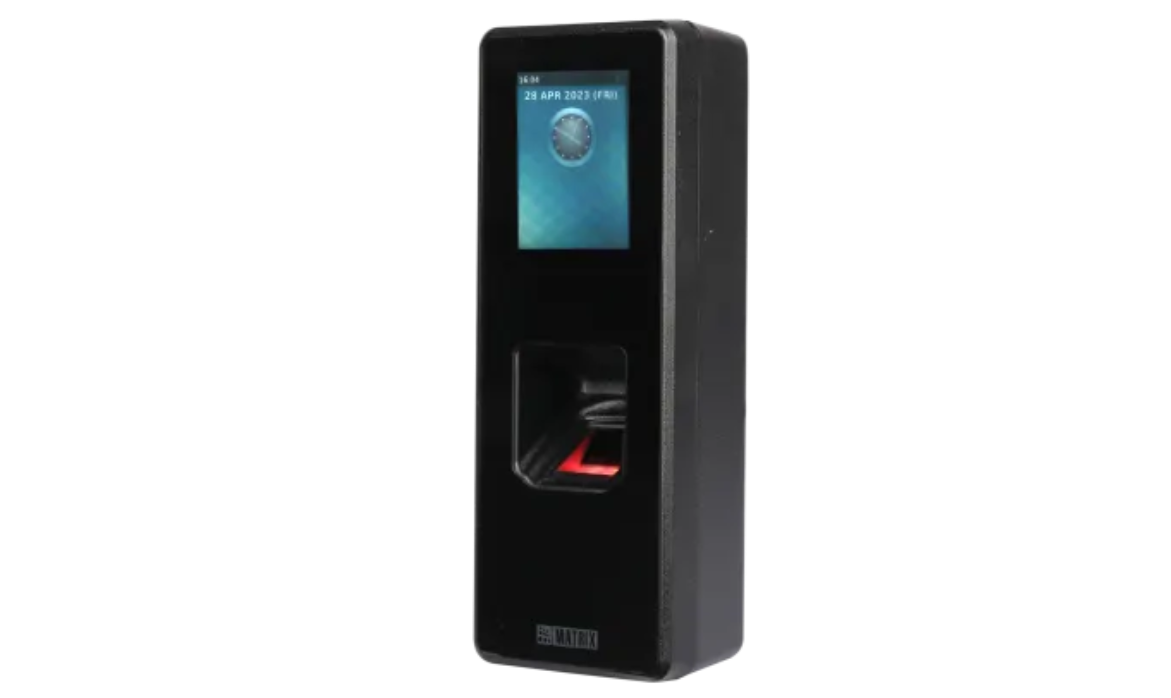

Finger and RFID Card Based Touch Screen Reader
- Multi-Credential Support – Fingerprint, PIN, BLE, and RFID Card
- 2” Touch Screen Display
- Supports Multi-factor Credential Support
- Supports Third Party Application via Wiegand Interface
COSEC ATOM RD300
Technical Specifications
| Parameters | Specifications |
|---|---|
| GENERAL | |
| Credential Support | Fingerprint, PIN, BLE, and Card |
| RF Option | COSEC ATOM RD300E:- EM Proximity Card COSEC ATOM RD300M:- MIFARE Classic®, DESFire EV1 and EV2(Read/Write), NFC Tag COSEC ATOM RD300I:- HID i-Class/ Mifare/ Desfire/ Combo Cards *MIFARE and MIFARE Classic® are trademarks of NXP B.V. |
| CAPACITY | |
| User Profiles | Depends on the Master Device |
| Event Log | Depends on the Master Device |
| COMMUNICATION | |
| Inbuilt Bluetooth® | Yes |
| WiFi | Yes (802.11 b/g/n) |
| INTERFACE | |
| RS-232 | Yes (Compatible with COSEC ARGO, COSEC VEGA, COSEC PATH V2) |
| Wiegand | Yes |
| RS-485 | Yes (Compatible with ARC DC200P) |
| HARDWARE | |
| Display | 2” Touch screen Display |
| Display Resolution | 320 x 240 Pixel |
| Dimensions | 153mm X 56 mm X 37mm |
| Weight | 330grms (0.72 lbs) |
| Gorilla Glass | Yes (Gorilla Glass 3) |
| CPU | AM3352 |
| RAM | 256 MB |
| Flash Memory | 256 MB |
| Tamper Detection | Yes |
| Buzzer | Yes (12V Magnetic buzzer) |
| LEDs | No |
| Ingress Protection (IP) | Yes (IP65) |
| Vandal Proof (IK) | Yes (IK06) |
| Keypad | Yes (Touch-Sense Keypad) |
| ENVIRONMENTAL | |
| Operating Temperature | -20°C to +55°C |
| Humidity | 5% to 95 % RH Non-Condensing |
| FINGERPRINT SENSOR | |
| Sensor Type | Optical |
| Sensor Name | SFM6030-OC6 |
| Sensor Surface | Scratch Free |
| Resolution | 500 DPI |
| Sensing Area | 16.0mm X 18.0mm |
| INSTALLATION | |
| Wall Mount | Yes |
| Flush Mount | Yes |
