COSEC ARC IO800
Compact Input-Output Controller Devised for Superior Control
Higher Device Control Capacity
- 8 AUX In Ports
- 8 AUX Out Ports
- One Device Fits for all Controlling Requirements
Input/Output Linking
- Access Control Integration with Fire Alarm System, Video Surveillance, and BMS
- Controlled Floor Access with Elevator Access Control
- Siren and Flashers Activation for Forced Door Openings
- Enhanced Integrated Environment with Overall Security Coverage
Convenient Communication Options
- Ethernet/PoE
- RS-485
Features
Secured Communication
Secure data transmission with SSL encryption, providing a highly reliable solution that is snoop-proof and hack-proof
01
IP to Door
Eliminate the need for long cables between the control panel, reader, and lock, reducing costs effectively with the innovative IP to Door technology
02
Elevator Access Control
Enable elevator access control by granting or denying floor access based on user rights, enhancing safety and security
03
Auxiliary Devices Interface
Allow seamless connection of fire alarm as well as motion sensors and relay devices via aux ports, eliminating the need for external integration hardware
04
05
Higher Events Storage
Built-in offline event storage capacity of 100K events ensures accurate event data and security in case of server connectivity breaks
06

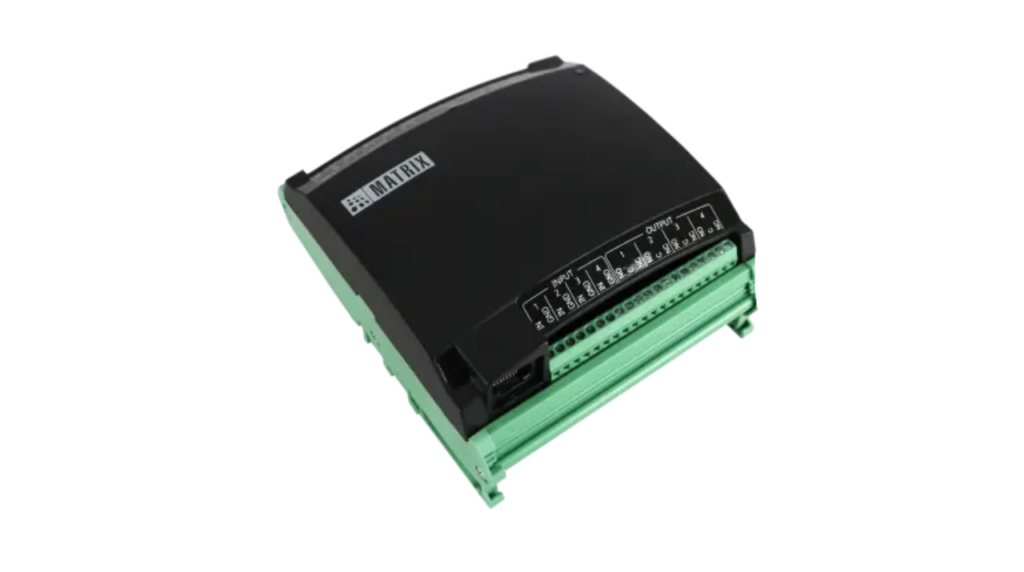

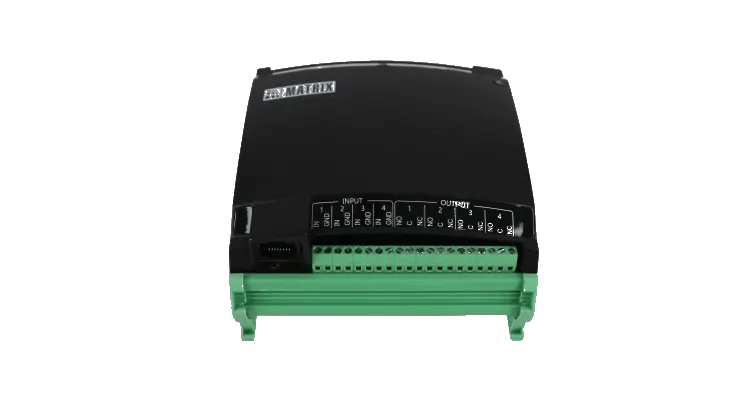

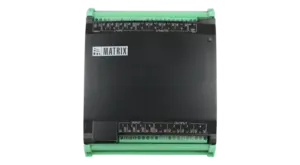

COSEC ARC IO800
COSEC ARC IO800 Variants
The COSEC ARC IO800 is a compact I/O controller for versatile device management.
Access Control Input Output Controller
- 8 Auxiliary Input Ports to Connect Fire Alarm, Auxiliary Sensors, and More
- 8 Auxiliary Output Ports to Connect Notifier, Strobe Flash, Siren, Elevator Switches, and More
- Provides Floor-wise Access Control
- Can Manage upto 8 Floors

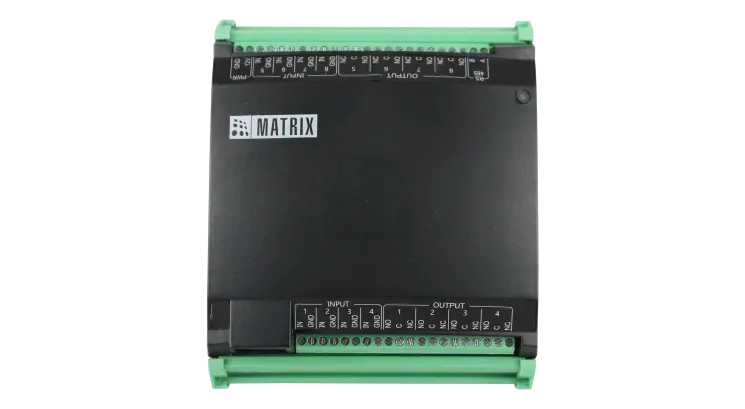

COSEC ARC IO800
Technical Specifications
| GENERAL | |
|---|---|
| Communication mode | Ethernet & RS-485 |
| Event buffer | 100,000 |
| COMMUNICATION | |
| Ethernet | Yes (10/100 Mbps) |
| RS-485 | YES |
| POE | Yes (IEEE 802.3 af) |
| INTERFACE | |
| Aux-In | 8 Input Port |
| AUX OUT | 8 Output Port |
| AUX IN Type | 4 State supervised |
| AUX OUT Type | 28VDC @2A (Relay SPDT, FORM C) |
| HARDWARE | |
| CPU | PIC32 Microcontroller |
| Flash memory | 512 Kbytes |
| RAM memory | 128 Kbytes SRAM |
| Reset switch | Yes (for making device default) |
| AUDIO VISUAL | |
| LED | 1 Dual color LED |
| Buzzer | Yes |
| ENVIRONMENTAL | |
| Operating Temperature | 0°C to +50°C (32°F to 122°F) |
| Relative Humidity | 20% to 95 % RH Non-Condensing |
| POWER | |
| Power | Adaptor = 12 VDC @ 2 A, PoE = 12 VDC @1 A” |
| MECHANICAL | |
| Dimensions | 107 mm x 125.5 mm x 55 mm |
| Weight | 0.26 Kgs (0.57 lbs) |
| COMPATIBILITY | |
| System Integration | API for Software integration |
| Operational Mode | Direct/Panel door with COSEC CENTRA/ VYOM Panel door with Standalone COSEC PANEL200 |
